Radiator - 2.0L GTDI: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Charge Air Cooler (CAC). For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  2. Remove the front bumper cover. For additional information, refer to BUMPERS .

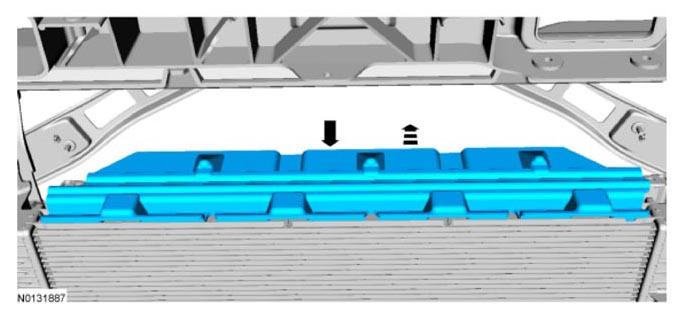

  3. Remove the upper radiator air deflector.
    G09295103

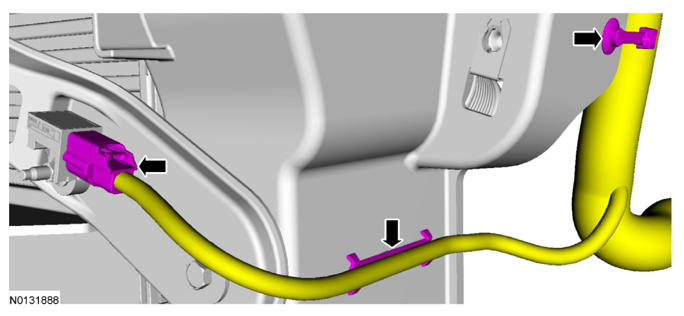

  4. Disconnect the LH front impact severity sensor electrical connector and detach the 2 wiring harness retainers.
    G08978570

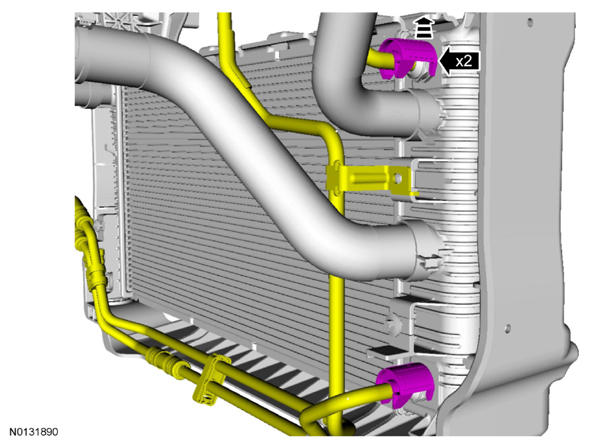

  5. Remove the 2 transmission fluid cooler tube secondary latches.
    G08978571

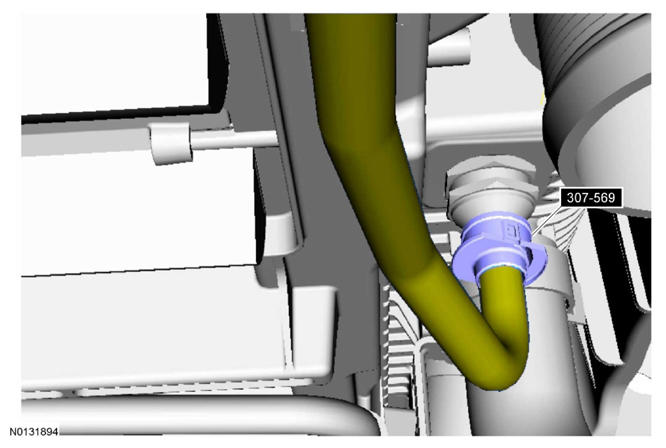

  6. Using the Transmission Cooler Line Disconnect Tool, disconnect the upper transmission fluid cooler tube from the radiator.
    G08978572

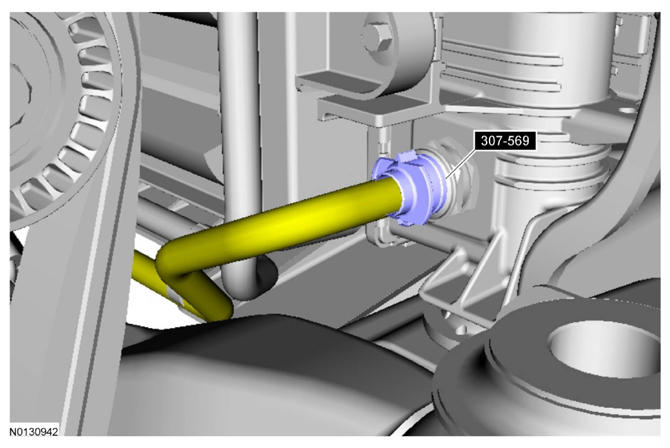

  7. Using the Transmission Cooler Line Disconnect Tool, disconnect the lower transmission fluid cooler tube from the radiator.
    G08978573

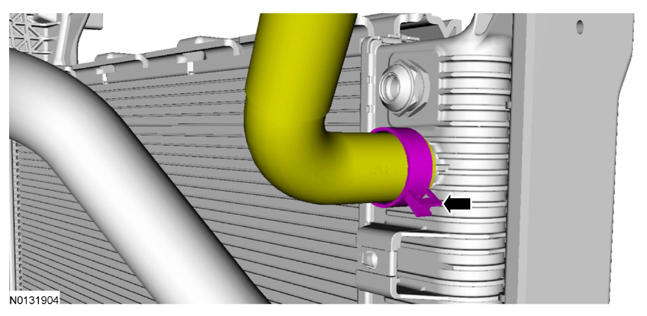

  8. Release the clamp and disconnect the degas bottle-to-radiator hose from the radiator.
    G08978574

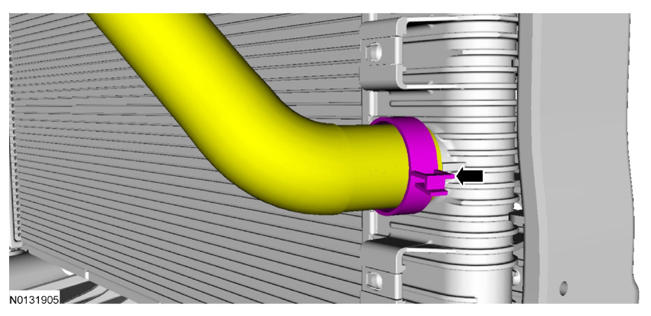

  9. Release the clamp and disconnect the lower radiator hose from the radiator.
    G08978575

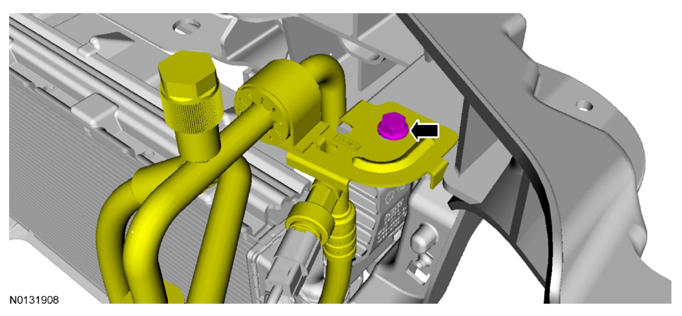

  10. Remove the A/C compressor-to-condenser line bracket bolt.
    G08978576

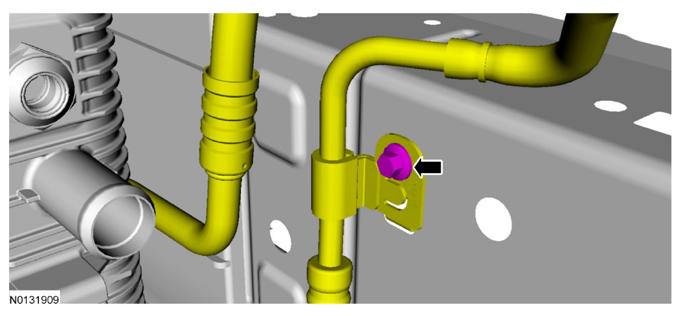

  11. Remove the A/C condenser-to-evaporator bracket bolt.
    G08978577

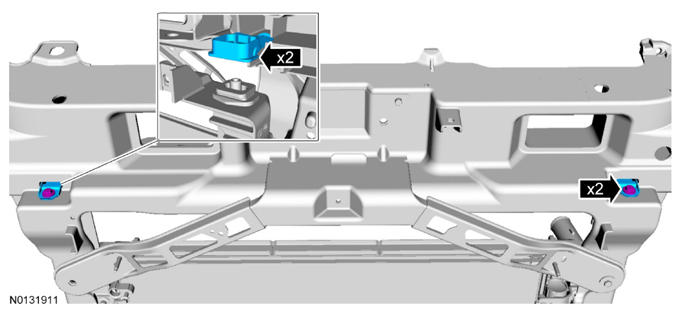

  12. Remove the 2 bolts and the 2 radiator brackets.
    G08978578

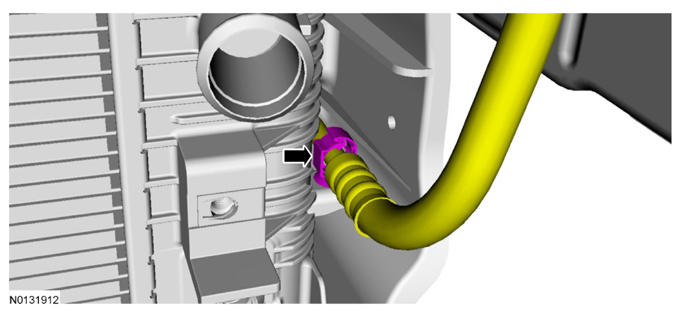

  13. Detach the A/C line retainer from the radiator.
    G08978579

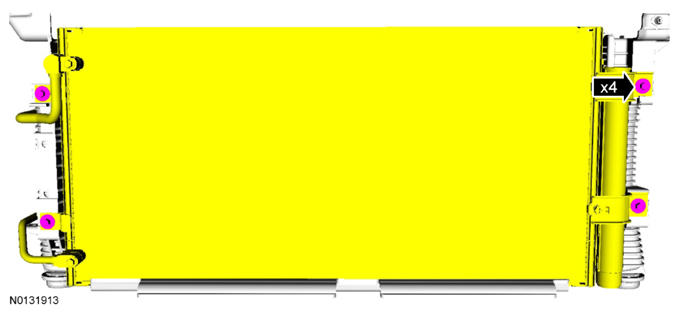

  14. Remove the 4 A/C condenser bolts and position the A/C condenser aside.
    G08978580

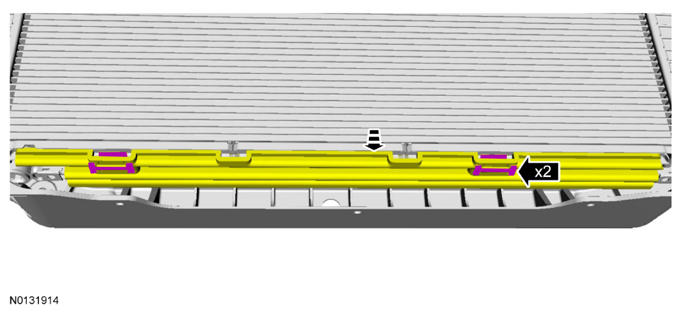

  15. Detach the 2 lower radiator air deflector clips from the radiator.
    G08978581

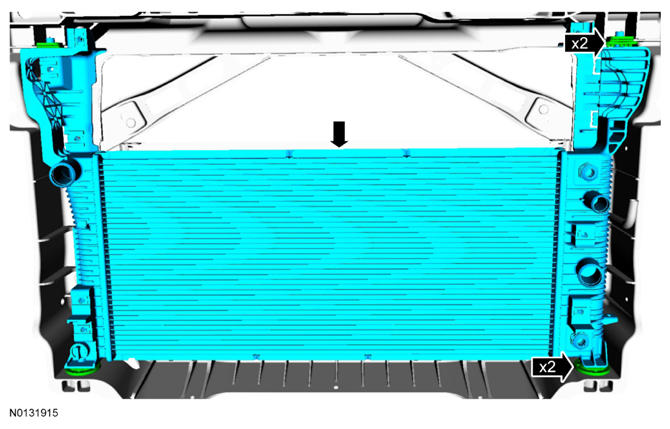

  16. Remove the radiator and, if necessary, the 2 upper and 2 lower radiator insulators.
    G08978582
