Radiator - 2.0L GTDI: Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, install the 2 upper and 2 lower radiator insulators and install the radiator.
    G08978582

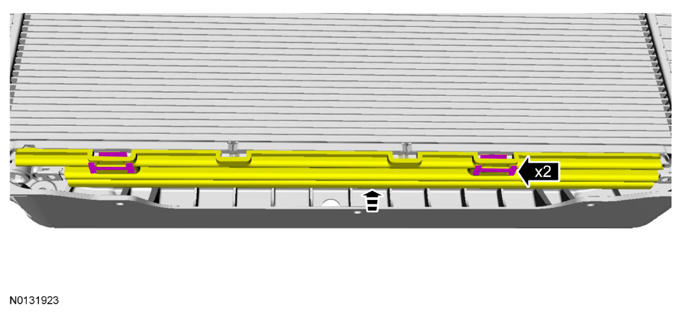

  2. Attach the 2 lower radiator air deflector clips to the radiator.
    G08978584
  3. Position the A/C condenser and install the 4 bolts.
    • Tighten to 6 Nm (52 lb-in).
      G08978580
  4. Attach the A/C line retainer to the radiator.
    G08978579
  5. Install the 2 radiator brackets and the 2 bolts.
    • Tighten to 5 Nm (44 lb-in).
      G08978578
  6. Install the A/C condenser-to-evaporator bracket bolt.
    • Tighten to 9 Nm (80 lb-in).
      G08978577
  7. Install the A/C compressor-to-condenser line bracket bolt.
    • Tighten to 7 Nm (62 lb-in).
      G08978576
  8. Connect the lower radiator hose and position the clamp.
    G08978575
  9. Connect the degas bottle-to-radiator hose and position the clamp.
    G08978574

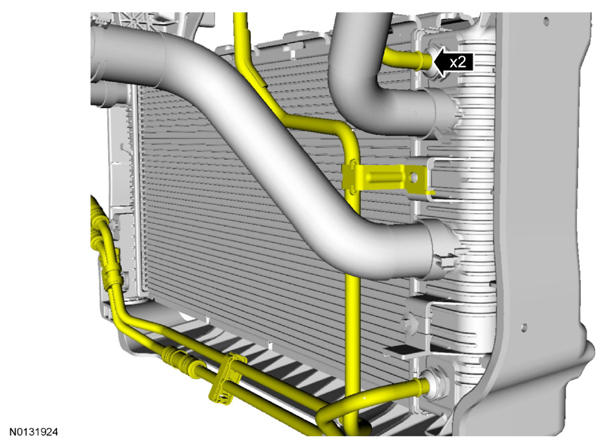

  10. Connect the 2 transmission fluid cooler tubes to the radiator.
    G08978592
  11. Install the 2 transmission fluid cooler tube secondary latches.
    G08978571
  12. Attach the 2 wiring harness retainers and connect the LH front impact severity sensor electrical connector.
    G08978570

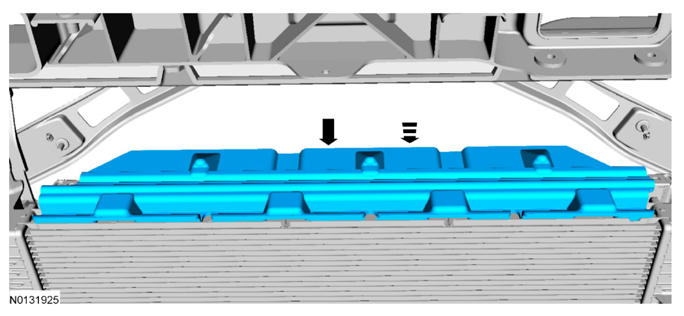

  13. Install the upper radiator air deflector.
    G08978595
  14. Install the front bumper cover. For additional information, refer to BUMPERS .
  15. Install the Charge Air Cooler (CAC). For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  16. Check and top off transmission fluid. Refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 6F35 .
