Removal and Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING

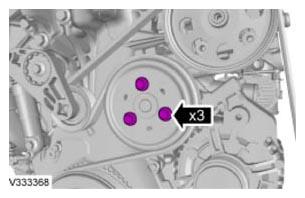

Loosen the 3 coolant pump pulley bolts.
- To install, tighten to 20 Nm (177 lb-in).
Rotate the accessory drive belt tensioner and detach the accessory drive belt.
- Make sure the accessory drive belt is positioned so coolant can not contaminate the belt.

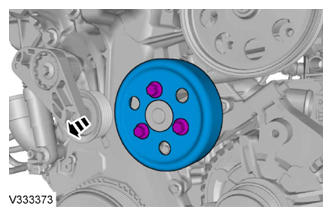

Remove the 3 bolts and the coolant pump pulley.
- To install, do not tighten the bolts at this time.

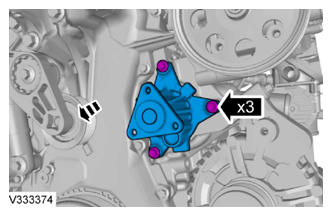

Remove the 3 bolts, the coolant pump and the O-ring seal.
- Discard the O-ring seal.
- To install, lubricate the new O-ring seal with clean engine coolant.
- To install, tighten to 10 Nm (89 lb-in).
To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
