Coolant Inlet Pipe - 3.5L, 3.7L: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |
| Motorcraft® Orange Antifreeze/Coolant Prediluted VC-3DIL-B (US); CVC-3DIL-B (Canada) |
WSS-M97B44-D2 |
NOTE:

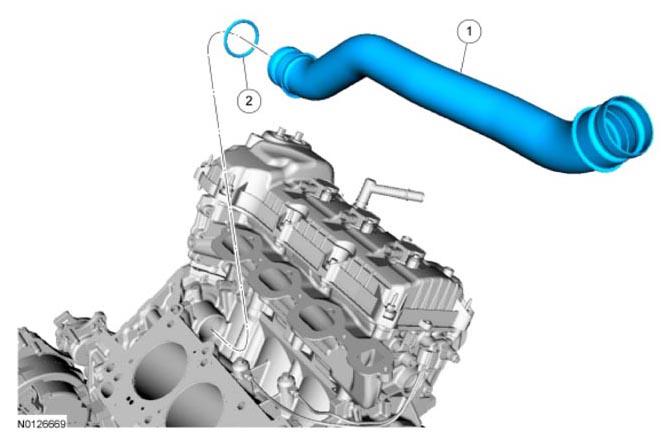

LH cylinder head, upper and lower intake manifold are removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9N271 | Coolant inlet pipe |
| 2 | 8565 | O-ring seal |
