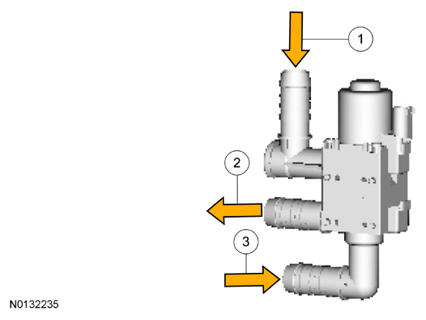

Coolant Flow Diagram - 2.0L Gasoline Turbocharged Direct Injection (GTDI) Temperature Control Valve
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The temperature control valve directs warm coolant to the transmission fluid cooler/warmer mounted on the transmission during transmission warm-up and allows the coolant to bypass the warmer when the transmission fluid reaches normal operating temperature.
NOTE:
At 38°C (100°F) ambient temperature, amber arrows indicate temperature approximately 82°C (179°F).
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Inlet open when energized |
| 2 | - | Outlet |
| 3 | - | Inlet open when de-energized |
