PINPOINT TEST C: DTCs P0815, P0816 (FLOOR SHIFT)
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- C1 READ AND RECORD ALL DTCs
- Ignition ON.
- Connect the scan tool.
- Using a scan tool, retrieve DTCs.
Is DTC P0815 set?
- Yes : CLEAR the DTC. RUN the KOEO self-test. If the DTC P0815 returns, GO to C2 .
- No : CLEAR the DTC. RUN the KOEO self-test. If the DTC P0816 returns, GO to C7.
- C2 CHECK THE UPSHIFT SIGNAL CIRCUIT FOR VOLTAGE
- Ignition OFF.

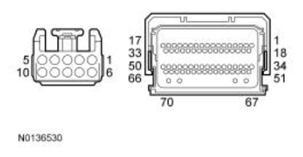

- Disconnect: Selector Lever C3245 .
- Inspect for damaged or pushed out terminals.
- Ignition ON.
- Measure the voltage
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C3245-9 CET43 (GY) - Ground
Is the voltage greater that 10 volts?
- Yes : GO to C5.
- No : GO to C3 .
- C3 CHECK THE UPSHIFT SIGNAL CIRCUIT FOR AN OPEN
- Ignition OFF.
- Disconnect: PCM C175B .
- Inspect for damaged or pushed out terminals.
- Measure the resistance
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C3245-9 CET43 (GY) C175B-23 CET43 (GY)
Is the resistance less than 5 ohms?
- Yes : GO to C4 .
- No : REPAIR the circuit. CLEAR the DTC.
- C4 CHECK THE UPSHIFT SIGNAL CIRCUIT FOR A SHORT TO GROUND
- Measure the resistance
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C3245-9 CET43 (GY) - Ground
Is the resistance greater than 10, 000 ohms?
- Yes : INSTALL a new PCM. REFER to ELECTRONIC ENGINE CONTROLS . PROGRAM the PCM with the latest calibration level. PERFORM the Solenoid Body Strategy Data Download procedure. REFER to SOLENOID BODY STRATEGY DOWNLOAD .
- No : REPAIR the circuit. CLEAR the DTC.
- Measure the resistance
between:
- C5 CHECK THE SIGNAL RETURN CIRCUIT FOR AN OPEN
- Connect: PCM C175B .
- Ignition ON.
- Measure the voltage
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C3245-9 CET53 (BU/OG) C3245-8 RE407 (YE/VT)
Is voltage greater than 10 volts?
- Yes : GO to C6 .
- No : REPAIR the circuit. If no open is found, INSTALL a new PCM. REFER to ELECTRONIC ENGINE CONTROLS . PROGRAM the PCM with the latest calibration level. PERFORM the Solenoid Body Strategy Data Download procedure. REFER to SOLENOID BODY STRATEGY DOWNLOAD .
- C6 CHECK THE SELECTSHIFT™ SWITCH
- Disconnect the SelectShift™ connector in the selector lever assembly.
- Measure the component side resistance
at the SelectShift™ connector while cycling the SelectShift™ upshift switch.
Positive Lead Negative Lead Pin Circuit Pin Circuit 9 - 10 -
Is the resistance less than 1.5 ohms?
- Yes : INSTALL a new selector lever. REFER to SELECTOR LEVER .
- No : INSTALL a new SelectShift™ switch. REFER to SELECTSHIFT™ SWITCH .
- C7 CHECK THE DOWNSHIFT SIGNAL CIRCUIT FOR VOLTAGE
- Ignition OFF.
- Disconnect: Selector Lever C3245 .
- Inspect for damaged or pushed out terminals.
- Ignition ON.
- Measure the voltage
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C3245-10 CET42 (GN/VT) - Ground
Is the voltage greater that 10 volts?
- Yes : GO to C10.
- No : GO to C8 .
- C8 CHECK THE DOWNSHIFT SIGNAL CIRCUIT FOR AN OPEN
- Ignition OFF.
- Disconnect: PCM C175B .
- Inspect for damaged or pushed out terminals.
- Measure the resistance
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C3245-10 CET42 (GN/VT) C175B-24 CET42 (GN/VT)
Is the resistance less than 5 ohms?
- Yes : GO to C9 .
- No : REPAIR the circuit. CLEAR the DTC.
- C9 CHECK THE DOWNSHIFT SIGNAL CIRCUIT FOR A SHORT TO GROUND
- Measure the resistance
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C3245-10 CET42 (GN/VT) - Ground
Is the resistance greater than 10, 000 ohms?
- Yes : INSTALL a new PCM. REFER to ELECTRONIC ENGINE CONTROLS . PROGRAM the PCM. with the latest calibration level. PERFORM the Solenoid Body Strategy Data Download procedure. REFER to SOLENOID BODY STRATEGY DOWNLOAD .
- No : REPAIR the circuit. CLEAR the DTC.
- Measure the resistance
between:
- C10 CHECK THE SIGNAL RETURN CIRCUIT FOR AN OPEN
- Connect: PCM C175B .
- Ignition ON.
- Measure the voltage
between:
Positive Lead Negative Lead Pin Circuit Pin Circuit C3245-10 CET42 (GN/VT) C3245-8 RE407 (YE/VT)
Is voltage greater than 10 volts?
- Yes : INSTALL a new selector lever. REFER to SELECTOR LEVER . CLEAR the DTC.
- No : REPAIR the circuit. If no open is found, INSTALL a new PCM. REFER to ELECTRONIC ENGINE CONTROLS . PROGRAM the PCM with the latest calibration level. PERFORM the Solenoid Body Strategy Data Download procedure. REFER to SOLENOID BODY STRATEGY DOWNLOAD .
