External Controls: 6F50/6F55

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

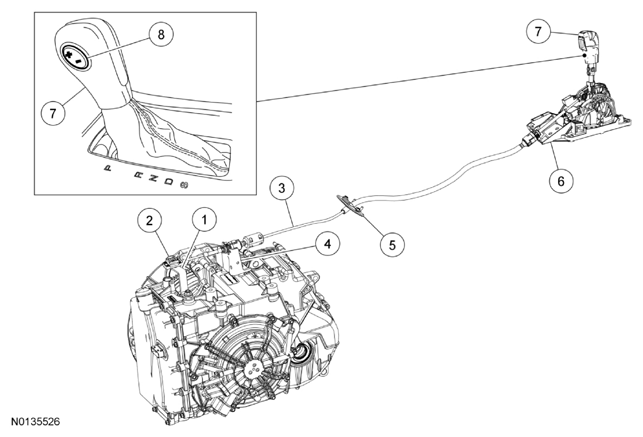

Fig 1: Identifying Automatic Transaxle/Transmission External Controls Components (6F50/6F55)
G08980286Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7A257 Manual control lever
2 - Adjuster locking tab (part of 7E395)
3 7E395 Selector lever cable
4 7B229 Selector lever cable bracket
5 - Selector lever cable grommet (part of 7E395)
6 7210 Selector lever assembly
7 7213 Selector lever knob
8 - SelectShift™ switch (part of 7213)
