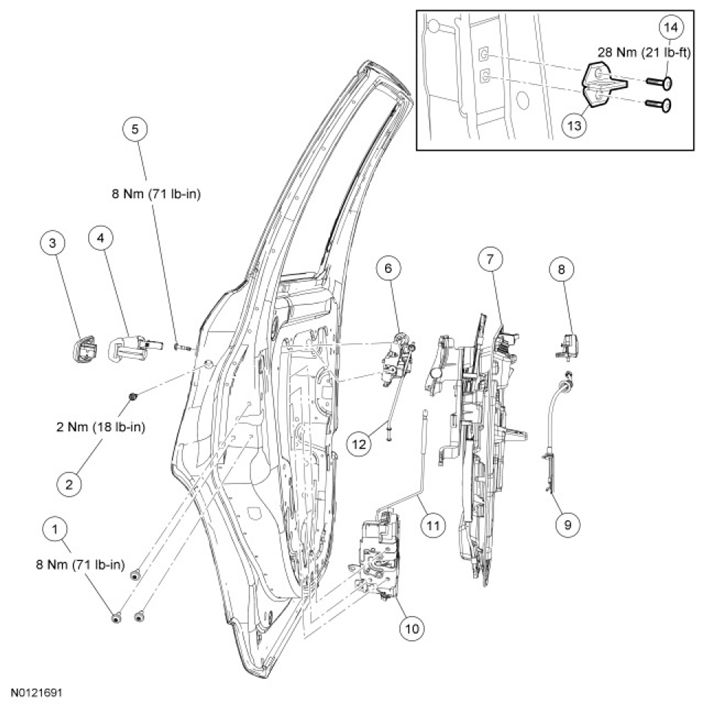

Rear Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705830 | Rear door latch bolt (3 required) |
| 2 | W506965 | Exterior rear door handle reinforcement screw |
| 3 | 218B08 | Exterior rear door handle bezel |
| 4 | 22404 | Exterior rear door handle strap |
| 5 | W708514 | Exterior rear door handle reinforcement bolt |
| 6 | 26684 RH/26685 LH | Exterior rear door handle reinforcement |
| 7 | 235A88 RH/235A89 LH | Rear door module |
| 8 | 22600 RH/22601 LH | Interior rear door handle |
| 9 | 266A46 | Interior rear door handle actuating cable |
| 10 | 26412 RH/26413 LH | Rear door latch |
| 11 | 26460 RH/26461 LH | Rear door lock actuating rod |
| 12 | 26596 RH/26597 LH | Exterior rear door handle actuating rod |
| 13 | 22008 | Striker |
| 14 | W710993 | Door latch striker screw (2 required) |
- For additional information, refer to the appropriate procedures.
