Removal and Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Passive Anti-Theft System (PATS) transceiver. For additional information, refer to ANTI THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS) .
  2. Remove the lower steering column shroud. For additional information, refer to STEERING COLUMN .

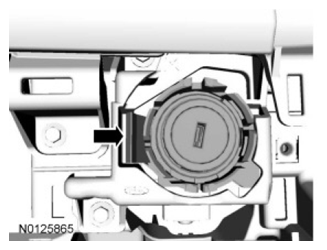

  3. Using a flat-blade screwdriver, release the ignition lock cylinder housing retaining tab and push the ignition lock cylinder housing inward.
    G07406710
  4. From underneath the instrument panel, remove the ignition lock cylinder housing.
    • Disconnect the electrical connector.
  5. To install, reverse the removal procedure.
