Ignition lock cylinder housing bracket

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

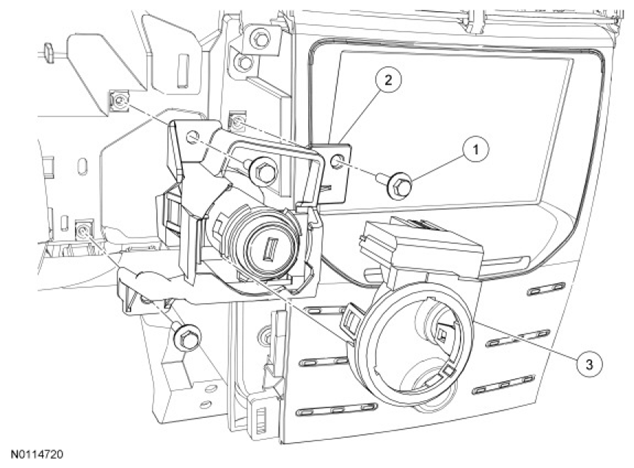

Fig 1: Identifying Ignition Lock Cylinder Housing Bracket Related Components
G07406708Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707628 Ignition lock cylinder housing bracket bolt (3 required)
2 11A153 Ignition lock cylinder housing bracket
3 15607 Passive Anti-Theft System (PATS) transceiver
