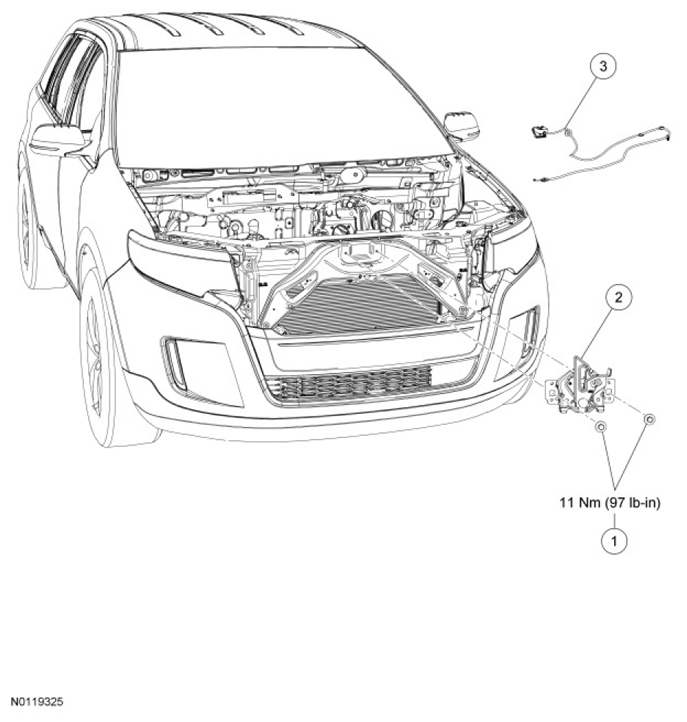

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | W715422 | Hood latch bolts (2 required) |
| 2 | 16700 | Hood latch |
| 3 | 16916 | Hood latch release handle and cable |
- For additional information, refer to the appropriate procedures.
