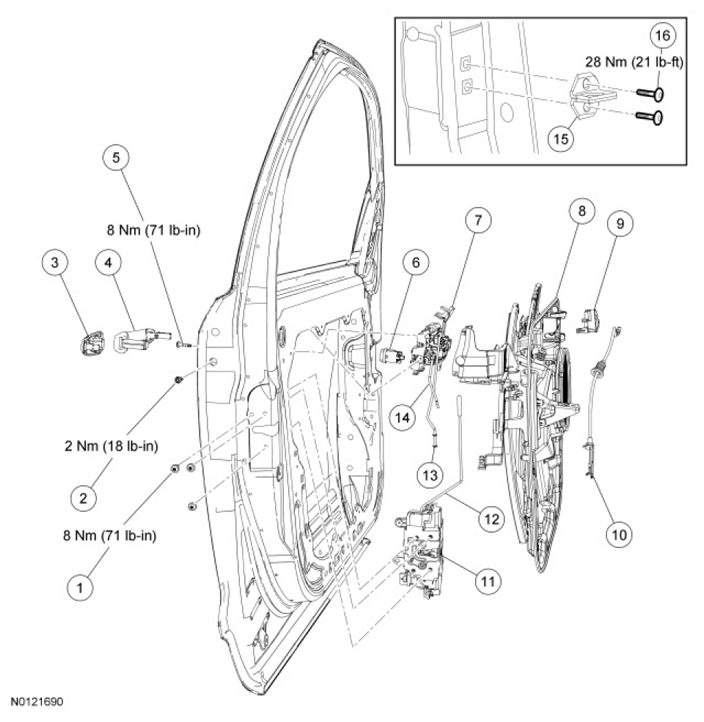

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705830 | Front door latch bolt (3 required) |
| 2 | W506965 | Exterior front door handle reinforcement screw |
| 3 | 218B08 | RH/218A14 LH Exterior front door handle bezel |
| 4 | 22404 | Exterior front door handle strap |
| 5 | W708514 | Exterior front door handle reinforcement bolt |
| 6 | 21990 | Front door lock cylinder |
| 7 | 26684 | RH/26685 LH Exterior front door handle reinforcement |
| 8 | 235A86 | RH/235A87 LH Front door module |
| 9 | 22600 | RH/22601 LH Interior front door handle |
| 10 | 221A00 | Interior front door handle actuating cable |
| 11 | 21812 | RH/21813 LH Front door latch |
| 12 | 21852 | RH/21853 LH Front door lock actuating rod |
| 13 | 22152 | RH/22153 LH Exterior front door handle actuating rod |
| 14 | 22135 | Front door lock cylinder actuating rod (if equipped) |
| 15 | 22008 | Striker |
| 16 | W710993 | Door latch striker screw (2 required) |
- For additional information, refer to the appropriate procedures.
