Door Lock Control Switch - Edge: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: LH front shown in illustration, RH front similar.

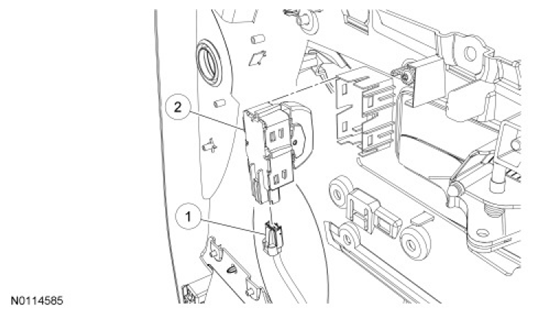

Fig 1: Identifying Door Lock Control Switch And Electrical Connector (Edge)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Door lock control switch electrical connector (part of 14630 RH/14631 LH)
2	-	Door lock control switch (part of 14527 RH/14528 LH)
