Power Locks

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

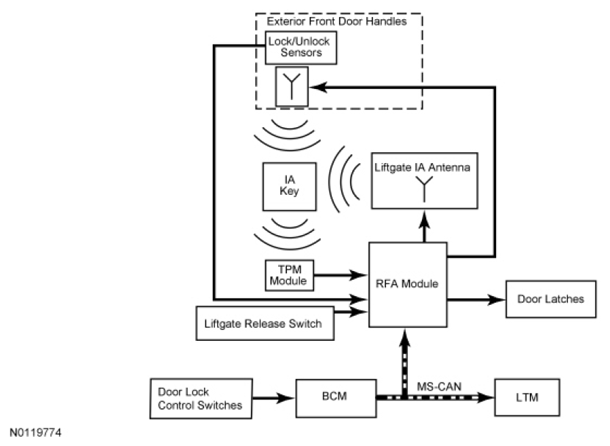

Fig 1: Power Locks Communication Diagram
G07406636Courtesy of FORD MOTOR CO.

The BCM  monitors the door lock control switches. When the BCM  receives an unlock/lock command from either door lock control switch, the BCM  sends a message to the RFA  module to either lock or unlock the doors.
