Wiper and Washer System - Exploded View, Washer Pump and Reservoir
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

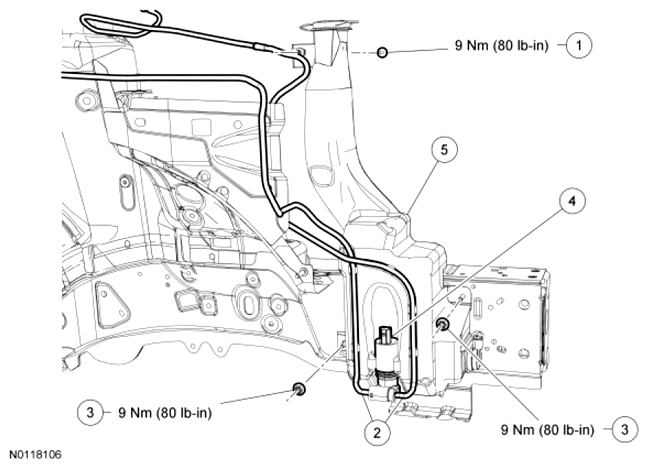

Fig 1: Exploded View Of Wiper And Washer System With Torque Specifications (Washer Pump And Reservoir)
| Item | Part Number | Description |
|---|---|---|
| 1 | N807658 | Washer reservoir filler neck retaining bolt |
| 2 | 17A605 | Washer reservoir hoses |
| 3 | W709603 | Washer reservoir nuts (2 required) |
| 4 | 17664 | Washer pump |
| 5 | 17618 | Washer reservoir |
- For additional information, refer to the appropriate procedures.
