Instrument Panel Upper Section - RH

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Remove the passenger air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Remove the 4 instrument top panel-to-instrument panel screws from the back side of the instrument panel.
Remove the RH instrument trim panel. For additional information, refer to INSTRUMENT PANEL - EXPLODED VIEW .
Remove the RH vent register. For additional information, refer to CLIMATE CONTROL .
Remove the Front Controls Interface Module (FCIM) and instrument panel speaker. For additional information, refer to INFORMATION AND ENTERTAINMENT SYSTEMS .
Remove the screw from the lower left corner of the RH instrument panel top cover.
- To install, tighten to 3 Nm (27 lb-in).

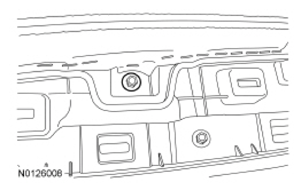

  Fig 1: Identifying Lower Left Corner Screw
  Courtesy of FORD MOTOR CO.
Remove the screw from the lower right side of the RH instrument panel top cover.
- To install, tighten to 3 Nm (27 lb-in).

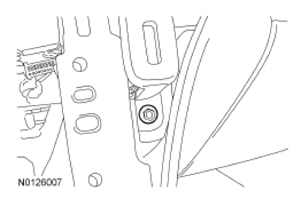

  Fig 2: Identifying Lower Right Corner Screw
  Courtesy of FORD MOTOR CO.
Remove the RH instrument panel top cover by pulling straight back to disengage the clips.
To install, reverse the removal procedure.
