Speaker - Instrument Panel: MKX

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

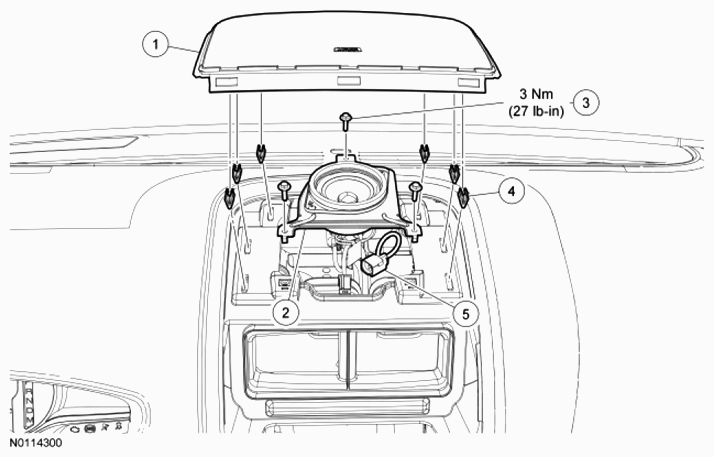

Fig 1: Instrument Panel Speaker Replacement Components With Torque Specifications (MKX)
G07399266Courtesy of FORD MOTOR CO.
Item Part Number Description
1 78044A92 Instrument panel speaker cover
2 18808 Instrument panel speaker
3 W707628-S Instrument panel speaker screws (4 required)
4 W714972 Instrument panel speaker cover clips (6 required)
5 - Instrument panel speaker electrical connector (part of 14401)
