Speaker - Instrument Panel: Edge

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

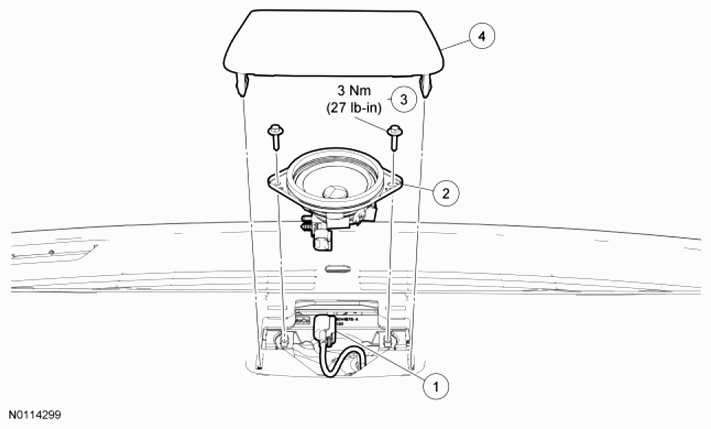

Fig 1: Instrument Panel Speaker Related Replacement Components With Torque Specifications (Edge)
G07399265Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Instrument panel speaker electrical connector (part of 14401)
2 18808 Instrument panel speaker
3 W707628-S Instrument panel speaker screws (4 required)
4 78044A92 Instrument panel speaker cover
