Passive Start Antenna - Rear: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

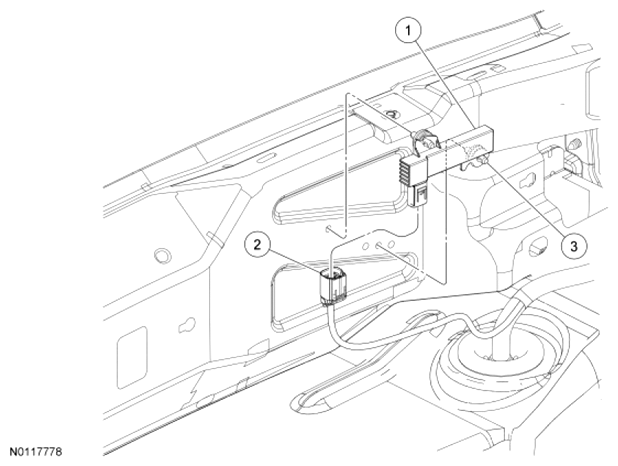

Fig 1: Identifying Rear Passive Start Antenna, Rear Seat Passive Start Antenna Electrical Connector And Clip
| Item | Part Number | Description |
|---|---|---|
| 1 | 15603 | Rear passive start antenna |
| 2 | - | Rear seat passive start antenna electrical connector (part of 14A005) |
| 3 | W713358 | Clip (2 required) |
