Passive Anti-Theft System (PATS) Transceiver: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

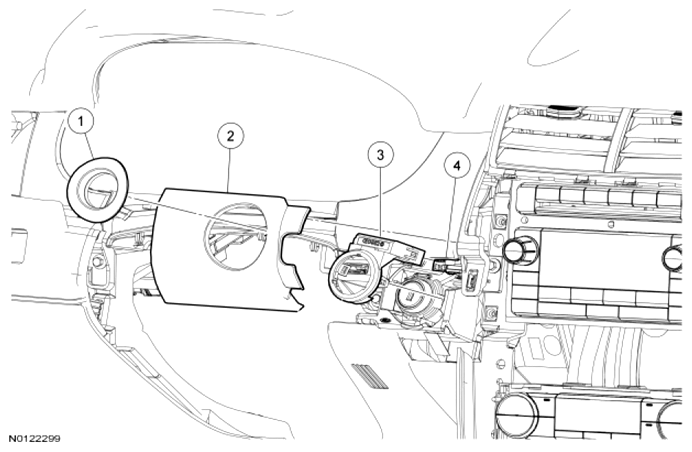

The center finish panel is shown in illustration removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 11584 | Ignition lock cylinder bezel |
| 2 | 04338 | Right finish panel |
| 3 | 15607 | PATS transceiver |
| 4 | - | Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
