Backup Transceiver
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

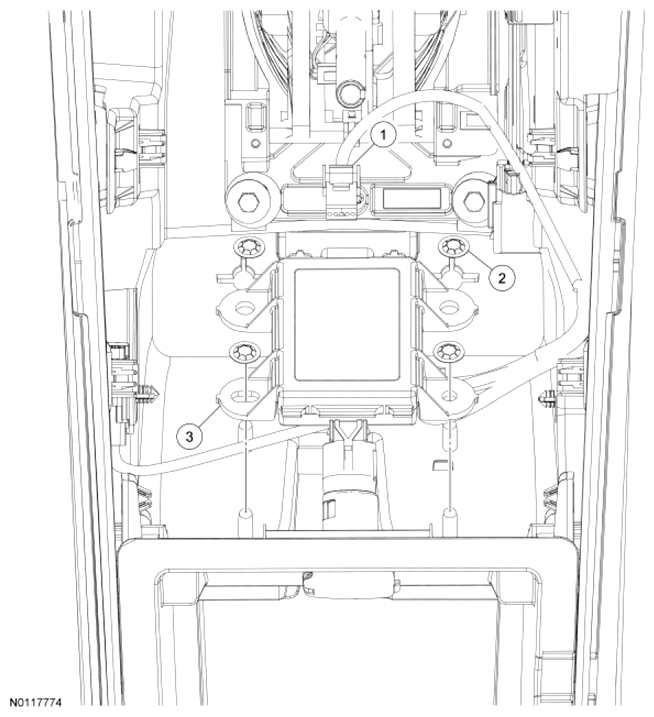

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Backup transceiver electrical connector (part of 14B079) |
| 2 | 045A06 | Push nut round (4 required) |
| 3 | 15607 | Backup transceiver |
- Remove the floor console selector trim panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
- Remove the power point. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
- For Edge only, remove the media hub. For additional information, refer to INFORMATION AND ENTERTAINMENT SYSTEMS .
