Steering Column Shroud: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

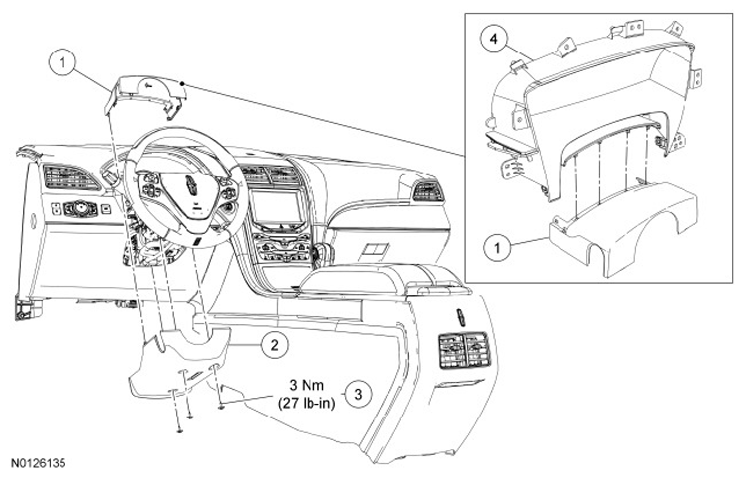

Fig 1: Exploded View Of Steering Column Shroud With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering column shroud
2	3530	Lower steering column shroud
3	W710485	Lower steering column shroud screw (3 required)
4	-	Instrument Panel Cluster (IPC) opening trim (part of 044F58)
