Steering Column Shaft: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected, or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

NOTE: The steering column and steering column shaft are serviced as an assembly on vehicles equipped with a manual steering column. For additional information, refer to STEERING COLUMN .

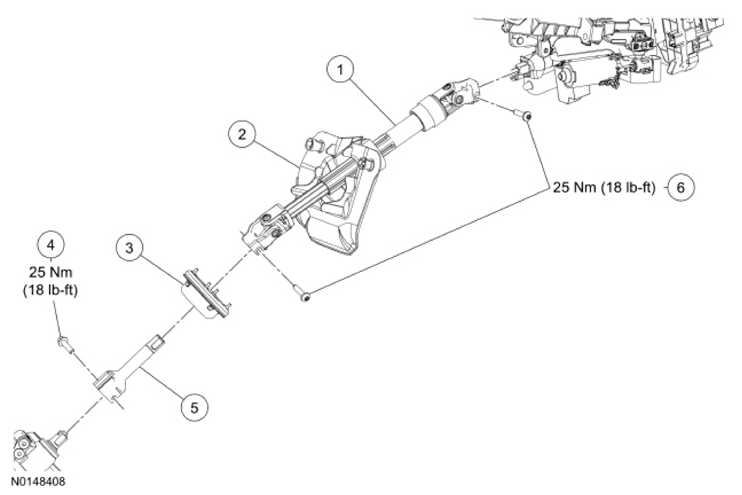

Fig 1: Steering Column Shaft Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3B676	Steering column shaft
2	3C611	Steering column shaft joint cover
3	3D677	Steering column shaft dash seal
4	W712961	Steering gear extension shaft-to-steering gear bolt
5	-	Steering gear extension shaft
6	W714878	Steering column shaft bolts (2 required)
