Steering Column Shaft Dash Seal: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
Do not allow the steering column to rotate while the steering column shaft is disconnected, or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring. For additional information, refer to
SUPPLEMENTAL RESTRAINT SYSTEM
.

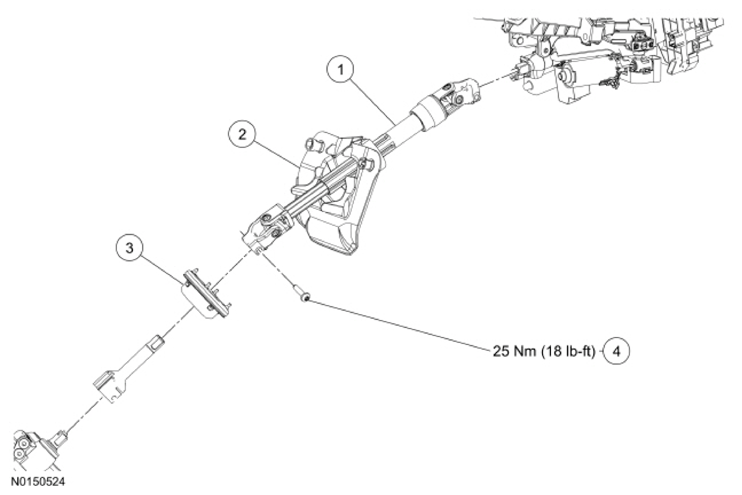

| Item | Part Number | Description |
|---|---|---|
| 1 | 3B676 | Steering column shaft |
| 2 | 3C611 | Steering column shaft joint cover |
| 3 | 3D677 | Steering column shaft dash seal |
| 4 | W714878 | Steering column shaft bolt |
