Steering Column Motor - Tilt: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

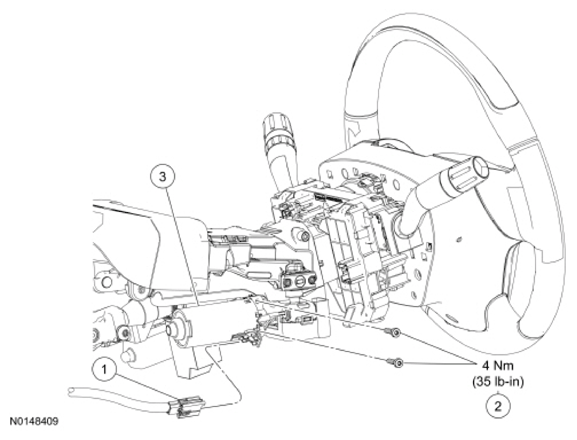

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Steering column tilt motor electrical connector (part of 14401) |
| 2 | W790120 | Steering column tilt motor screws (2 required) |
| 3 | 3D538 | Steering column tilt motor |
