Power Steering Pump to Steering Gear Pressure Line - 3.5L, 3.7L: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

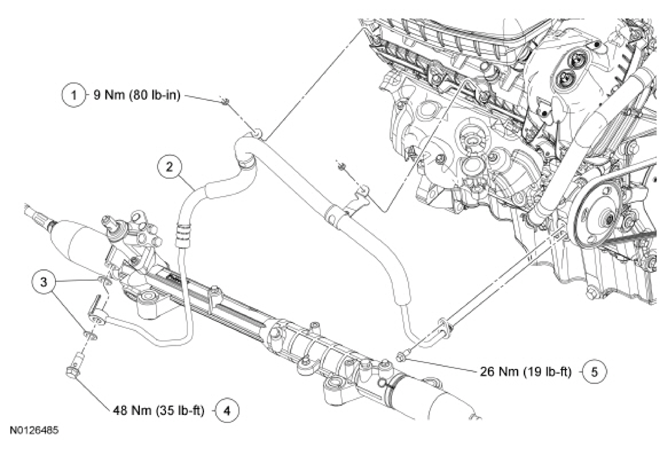

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications (3.5L And 3.7L)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520411	Pressure line bracket nuts (2 required)
2	3A719	Pressure line
3	-	Pressure line seals (2 required) (part of kit 3A705)
4	-	Pressure line-to-steering gear banjo bolt (part of kit 3A705)
5	W710726	Pressure line clamp plate bolt
