Power Steering Pump to Steering Gear Pressure Line - 2.0L GTDI: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

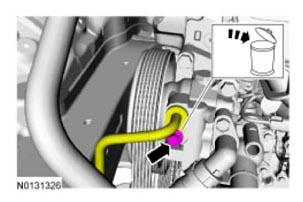

Discard the specified component. Follow local disposal regulations.
- To install, tighten the new bolt to 26 Nm (19 lb-ft).

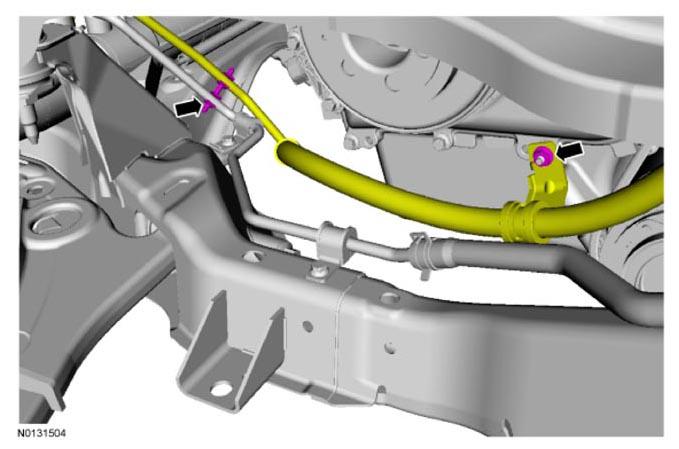

- To install, tighten to 9 Nm (80 lb-in).
- To install, tighten to 9 Nm (80 lb-in).

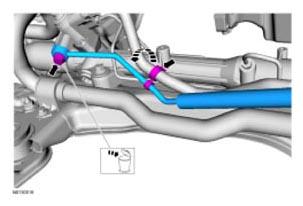

NOTE: Install a new banjo bolt and seals any time the power steering pressure line is disconnected from the steering gear, or a fluid leak may occur.

Discard the specified component. Follow local disposal regulations.
- To install, tighten to 48 Nm (35 lb-ft).
