Power Steering Pump - 3.5L, 3.7L: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL DESCRIPTION
| Remover, Stretchy Belt 303-1419 |
|
| Tool, Stretchy Belt Remover/Installer 303-1252 /2 |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

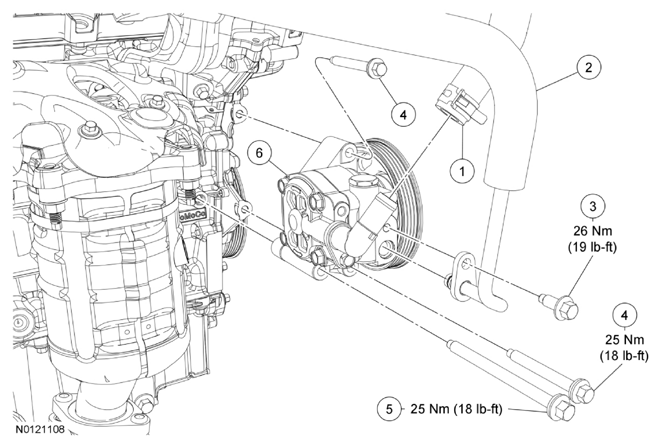

Fig 1: Exploded View Of Power Steering Pump And Mounting Bolts With Torque Specifications (3.5L And 3.7L)
| Item | Part Number | Description |
|---|---|---|
| 1 | 3691 | Supply hose |
| 2 | 3A719 | Pressure line |
| 3 | W710726 | Pressure line clamp plate bolt |
| 4 | W503302 | Power steering pump bolt (2 required) |
| 5 | W714207 | Power steering pump bolt |
| 6 | 3A696 | Power steering pump |
