Power Steering Pump - 2.0L GTDI: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.
NOTE: Removal steps in this procedure may contain installation details.
  1. Extract the fluid with a syringe.
    G07929159
  2. G08978512

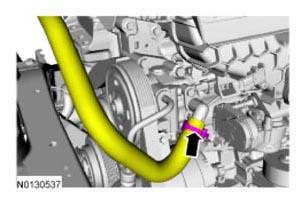

  3. G09291638
  4. Discard the specified component. Follow local disposal regulations.
    • To install, tighten the new bolt to 26 Nm (19 lb-ft).
      G07935586

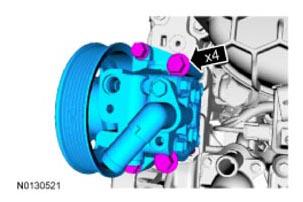

    • To install, tighten to 25 Nm (18 lb-ft).
      G09291640
