Power Steering Fluid Reservoir: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.
NOTE: Removal steps in this procedure may contain installation details.

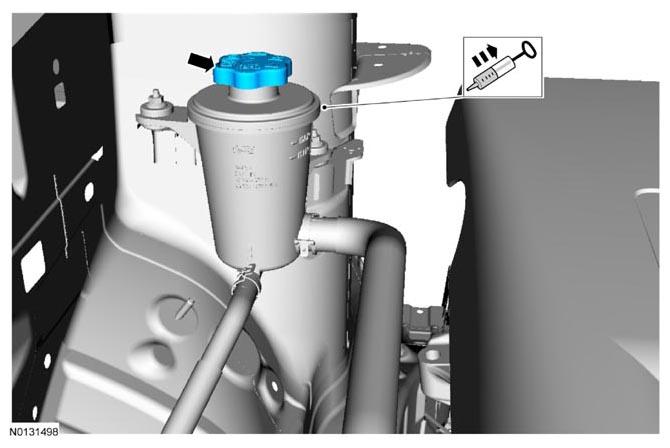

  1. Extract the fluid with a syringe.
    G07929159

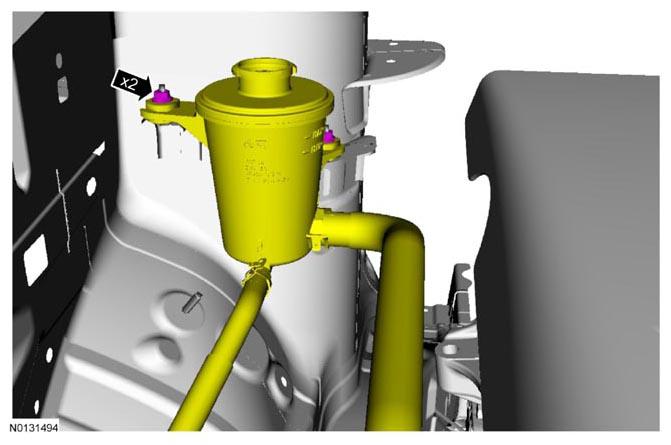

    • To install, tighten to 8 Nm (71 lb-in).
      G07929160

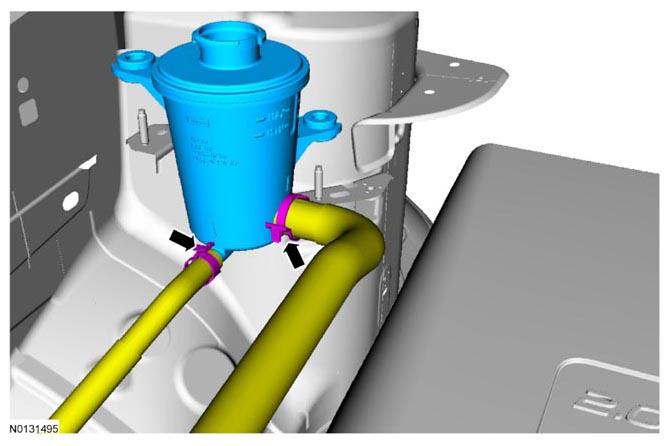

  2. G07929161
