Removal and Installation
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the intake manifold. For additional information, REFER to ENGINE - 2.0L GTDI .
-
NOTE: The RH KS must be installed in the 6 o'clock position and the LH KS must be installed in the 3 o'clock position. Failure to follow these instructions may result in damage to the engine.

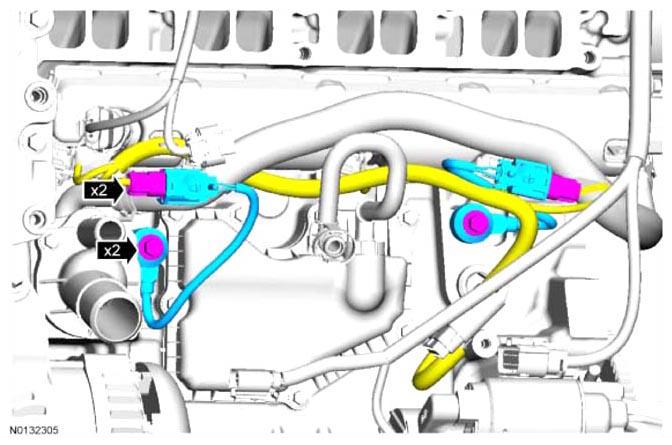

Disconnect the 2 KS electrical connectors and remove the 2 bolts and the 2 KS .
- To install, reverse the removal procedure.
