Fuel Rail Pressure (FRP) Sensor - 2.0L GTDI: Removal
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper Charge Air Cooler (CAC) inlet tube and intermediate CAC inlet tube. For additional information, REFER to INTAKE AIR DISTRIBUTION AND FILTERING .
- Rotate the accessory drive belt tensioner counterclockwise and position the accessory drive belt aside.
- Remove the 3 bolts and position the power steering pump aside.

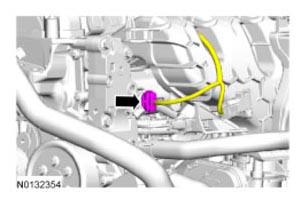

- Disconnect the Fuel Rail Pressure (FRP) sensor electrical connector.

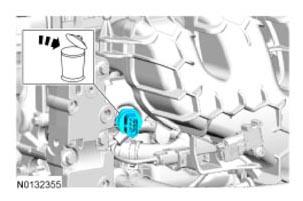

- Remove the FRP
sensor.
