Battery and Battery Tray
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

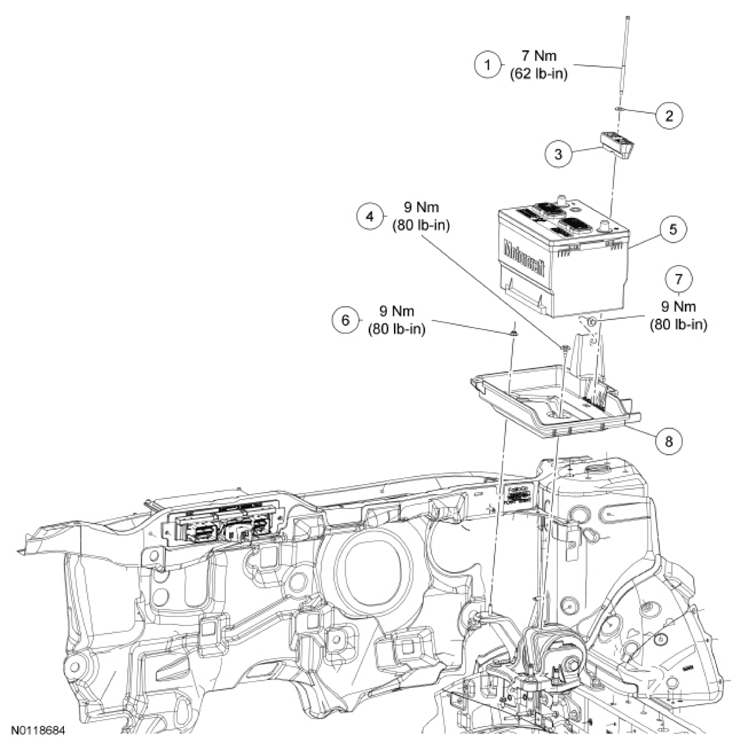

| Item | Part Number | Description |
|---|---|---|
| 1 | 10756 | Battery hold-down bracket bolt |
| 2 | W623482 | Battery hold-down bracket bolt washer |
| 3 | 10718 | Battery hold-down bracket |
| 4 | W710593 | Battery tray-to-bracket bolt |
| 5 | 10655 | Battery |
| 6 | W702751 | Battery tray nut |
| 7 | W710593 | Battery tray bolt |
| 8 | 10723 | Battery tray |
- Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
