Battery Current Sensor: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

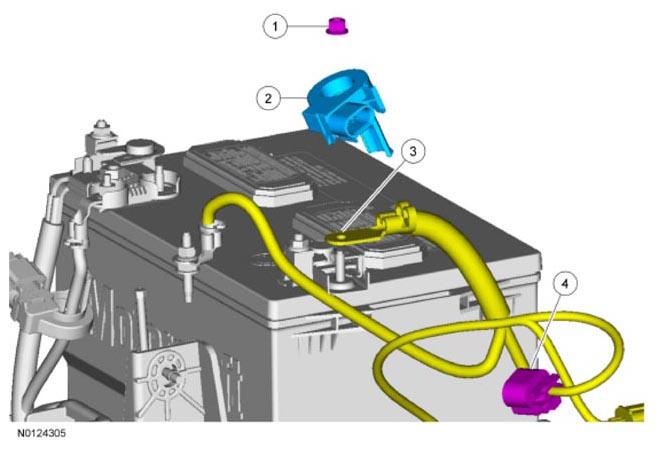

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Battery terminal nut (part of 14300) - 9 Nm (80 lb-in) |
| 2 | 14B357 | Battery current sensor |
| 3 | - | Negative battery cable terminal (part of 14300) |
| 4 | - | Battery current sensor electrical connector (part of 14290) |
