Component Connections
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

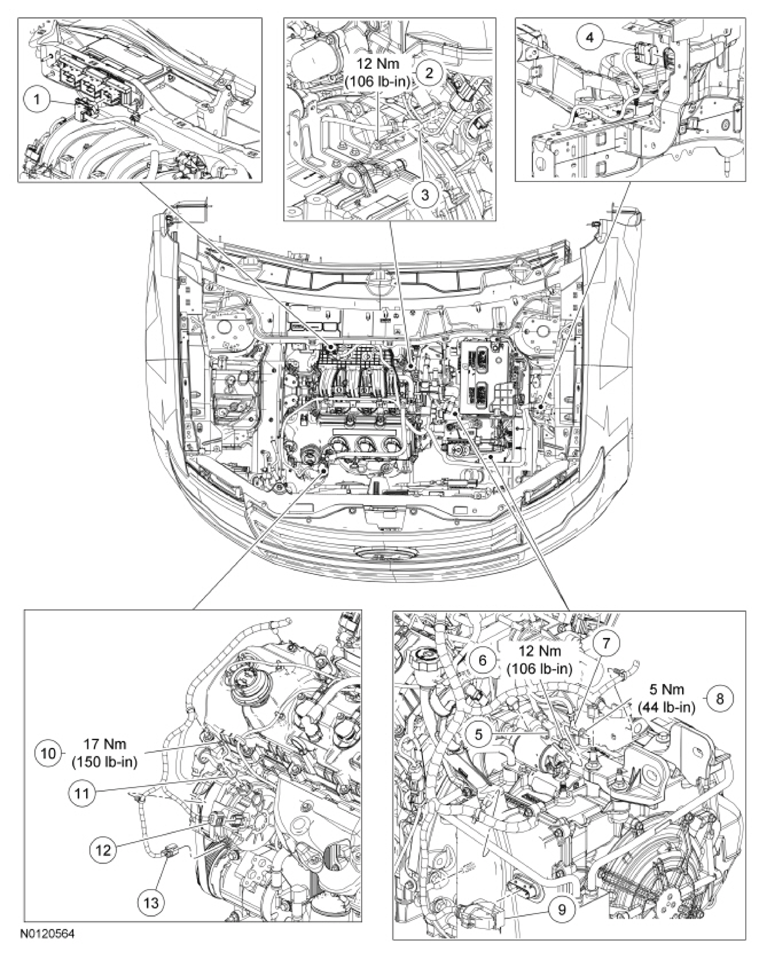

| Item | Part Number | Description |
|---|---|---|
| 1 | - | PCM electrical connector (part of 14300) |
| 2 | W705661 | Battery cable engine ground terminal bolt |
| 3 | - | Battery cable engine ground terminal (part of 14300) |
| 4 | - | Battery cable in-line electrical connector (part of 14300) |
| 5 | - | Starter B+ terminal (part of 14300) |
| 6 | W706414 | Starter B+ terminal nut |
| 7 | - | Starter solenoid cable terminal (part of 14300) |
| 8 | W705790 | Starter solenoid cable terminal nut |
| 9 | - | Transaxle solenoid body electrical connector (part of 14300) |
| 10 | W706414 | Generator B+ cable end nut |
| 11 | - | Generator B+ cable end (part of 14300) |
| 12 | - | Generator electrical connector (part of 14300) |
| 13 | - | A/C compressor electrical connector (part of 14300) |
