Battery Connections
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

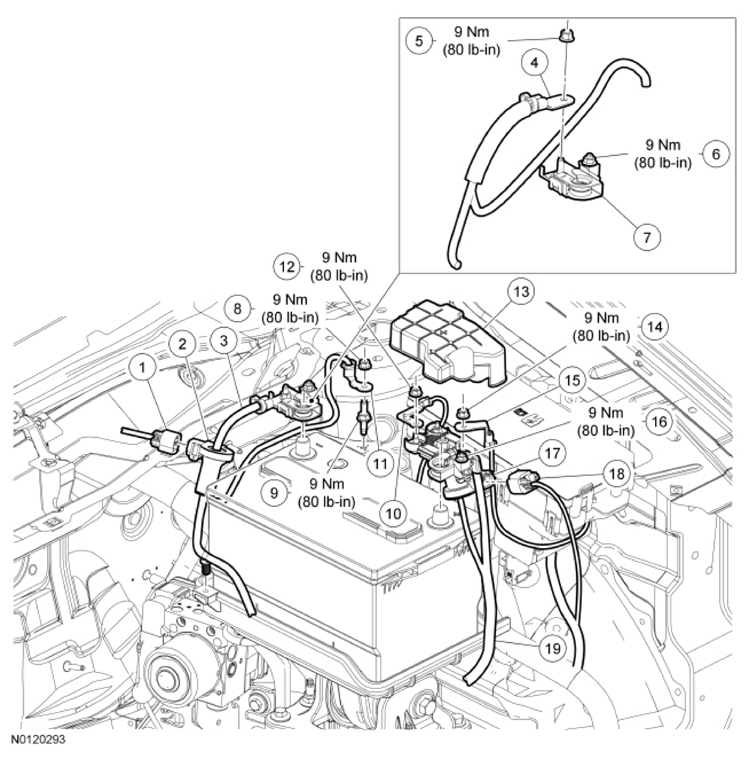

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Battery current sensor electrical connector (part of 14290) |
| 2 | 14B357 | Battery current sensor |
| 3 | 14300 | Battery ground cable |
| 4 | - | Battery cable ground terminal (part of 14300) |
| 5 | W705790 | Battery cable ground terminal nut |
| 6 | - | Battery cable ground clamp nut (part of 14450) |
| 7 | 14450 | Battery cable ground clamp |
| 8 | N805320 | Battery cable body ground terminal nut |
| 9 | W710898 | Battery cable body ground stud |
| 10 | - | Body Control Module (BCM) B+ terminal (part of 14290) |
| 11 | - | Battery cable body ground terminal (part of 14300) |
| 12 | N805320 | BCM B+ terminal nut |
| 13 | 14277 | Battery terminal cover |
| 14 | N805320 | High current Battery Junction Box (BJB) B+ terminal nut |
| 15 | - | High current BJB cable terminal (part of 14290) |
| 16 | - | Battery cable positive clamp nut (part of 14300) |
| 17 | 14B357 | Generator current sensor |
| 18 | - | Generator current sensor electrical connector (part of 14290) |
| 19 | 14300 | Battery positive cable |
