Passenger Seat Cushion With Manual Seat Track

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A new heater mat comes assembled on a new foam pad.

NOTE: To install a new OCSM , refer to the appropriate procedure in SUPPLEMENTAL RESTRAINT SYSTEM .

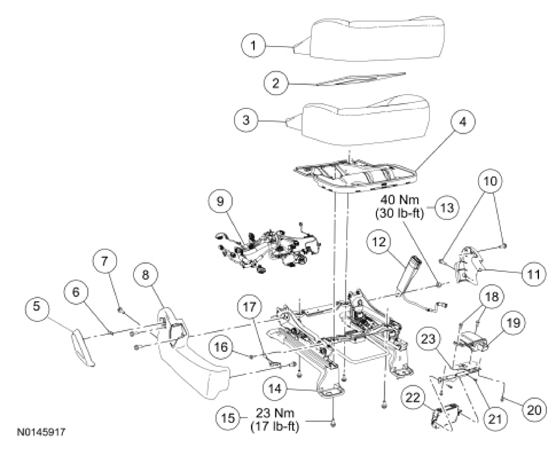

Fig 1: Passenger Seat Cushion With Torque Specifications (With Manual Seat Track)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Cushion trim cover
2	-	Cushion heater mat (part of 632A22) (if equipped)
3	632A22	Cushion foam pad
4	63100	Cushion frame
5	61736	Manual recliner handle
6	-	Manual recliner handle cover spring clip (part of 61736)
7	62294	Cushion side shield screws (4 required)
8	62186	Cushion side shield
9	14A698	Passenger seat wire harness
10	62294	Recliner side shield screws
11	62187	Recliner side shield
12	61202	Safety belt buckle
13	W520113	Safety belt buckle-to-seat track nut
14	61704	Manual seat track assembly
15	-	Seat track-to-cushion frame bolts (4 required)
16	62294	Shield bracket screw
17	14A301	Shield bracket
18	62294	OCSM retainers
19	14B422	OCSM
20	62294	DCSM bracket retainers (if equipped)
21	62294	DCSM retainers (if equipped)
22	14C724	DCSM (if equipped)
23	14A301	DCSM bracket (if equipped)

For additional information, refer to the appropriate procedures.
