Front Seat Backrest, Manual and Power Recline, Without Fold-Flat

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver backrest shown in illustration, passenger similar.

NOTE: Manual recliners without a fold-flat backrest are serviced with the backrest frame. Power recliners without a fold-flat backrest are serviced separately.

NOTE: A new heater mat comes assembled on a new foam pad.

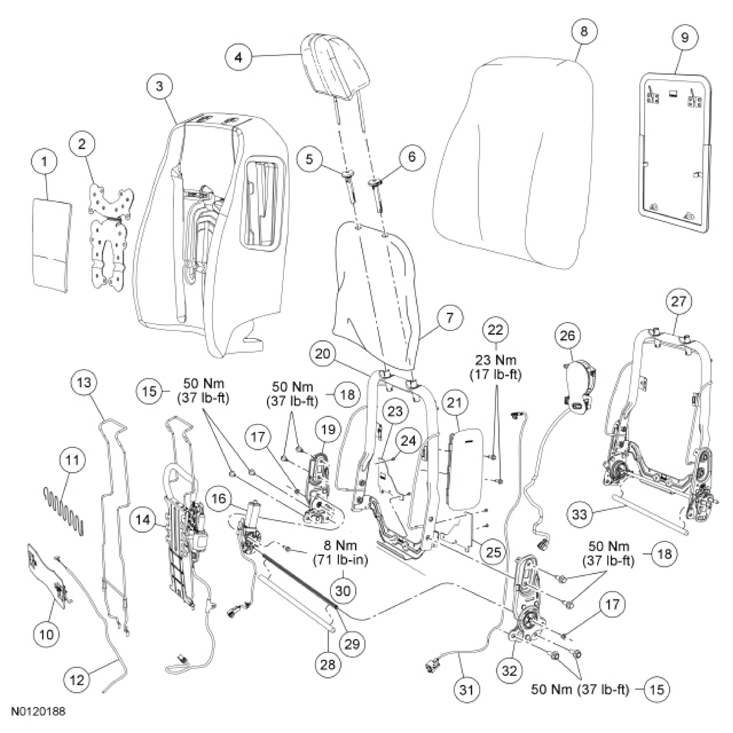

Fig 1: Exploded View Of Front Seat With Torque Specifications (Front Seat Backrest, Manual And Power Recline, Without Fold Flat)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Backrest heater mat (part of 64811) (if equipped)
2	18D507	Backrest climate control seat manifold (if equipped)
3	64811	Backrest foam pad
4	611A08	Head restraint
5	610A16	Head restraint guide, secondary
6	610A16	Head restraint guide, primary
7	-	Anti-squeak bag
8	64417	Backrest trim cover
9	60508	Backrest trim panel
10	65500	Manual lumbar assembly (if equipped)
11	62226	Upper support spring (if equipped)
12	-	Manual lumbar cable (part of 65500) (if equipped)
13	65500	Static lumbar
14	65500	Power lumbar assembly (if equipped)
15	W712240	Power/manual recliner-to-seat track bolts (4 required)
16	14547	Recliner motor (if equipped)
17	-	Recliner torque shaft clips (2 required) (if equipped)
18	W712240	Power recliner-to-backrest frame bolts (4 required) (if equipped)
19	62648	Inboard power recliner (if equipped)
20	61019	Backrest frame (with power recline) (if equipped)
21	611D11	Side airbag
22	W506021	Side airbag bolts
23	611A70	RH attachment panel
24	W712241	Screw (4 required)
25	611A70	LH attachment panel
26	18D507	Backrest TED (if equipped)
27	61018	Backrest frame (with manual recline) (if equipped)
28	625A84	Power recliner torque shaft cover (if equipped)
29	61726	Power recliner torque shaft (if equipped)
30	-	Recliner motor bolt (if equipped)
31	14K155	Side airbag wire harness
32	62648	Outboard power recliner (if equipped)
33	625A84	Manual recliner torque shaft cover (if equipped)
