Memory Set Switch: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: MKX shown in illustration, Edge similar.

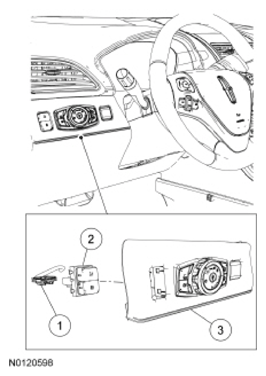

Fig 1: Identifying Left Trim Panel, Memory SET Switch And Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Electrical connector (part of 14401)
2	14776	Memory SET switch
3	044A91	Left trim panel
