Inboard Side of Cushion Frame and Power Seat Track From Underneath

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

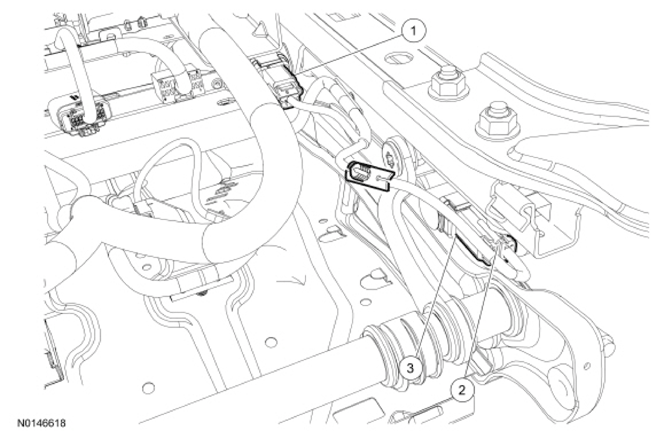

Fig 1: Identifying Front And Rear OCS Weight Sensor Bolt Electrical Connectors And Protection Bracket
G09299045Courtesy of FORD MOTOR CO.
Item Description
1 Front OCS  weight sensor bolt electrical connector
2 Rear OCS  weight sensor bolt protection bracket
3 Rear OCS  weight sensor bolt electrical connector
