Cushion Frame With Power Seat Track Attached From Underneath
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

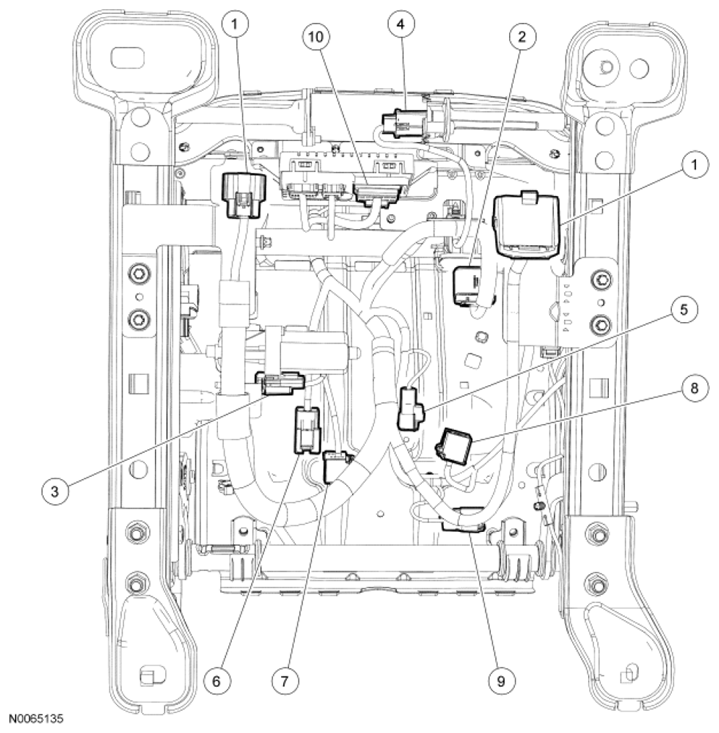

Fig 1: Identifying Power Seat Track With Power Recline, Power Lumbar And Climate Control Components (Cushion Frame With Power Seat Track Attached From Underneath)
| Item | Description |
|---|---|
| 1 | In-line electrical connector-to-vehicle harness electrical connector |
| 2 | OCSM electrical connector |
| 3 | Front height motor electrical connector |
| 4 | Horizontal motor electrical connector |
| 5 | Side air bag electrical connector |
| 6 | Power recline electrical connector |
| 7 | Backrest TED electrical connector |
| 8 | Cushion TED electrical connector |
| 9 | Power lumbar electrical connector |
| 10 | DCSM and 3 electrical connectors |
