Cushion Frame From Underneath
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

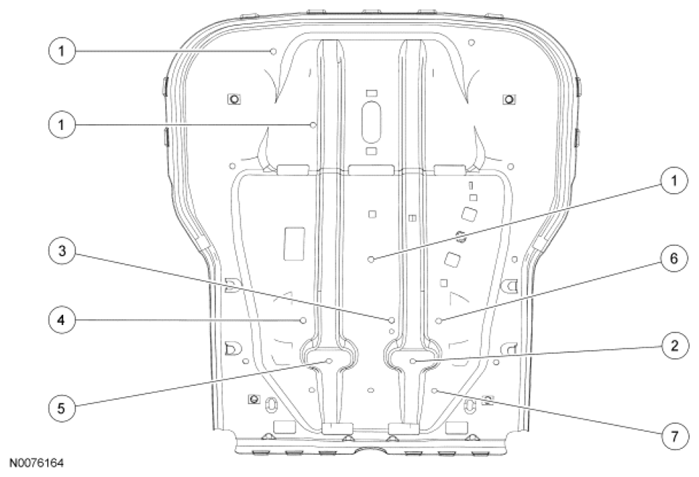

Fig 1: Identifying Power Seat Track With Power Recline, Power Lumbar And Climate Control Components (Cushion Frame From Underneath)
| Item | Description |
|---|---|
| 1 | Wire harness main bundle |
| 2 | OCS weight sensor bolt wire harness takeout |
| 3 | Side air bag electrical connector |
| 4 | Power recline electrical connector |
| 5 | Backrest TED electrical connector |
| 6 | Cushion TED electrical connector |
| 7 | Power lumbar electrical connector |
