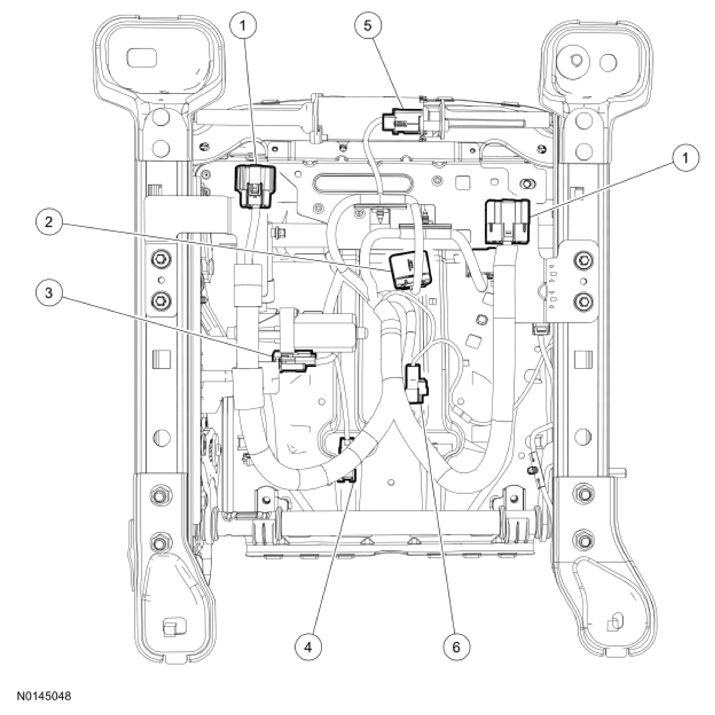

Cushion Frame With Power Seat Track Attached From Underneath
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | In-line electrical connector to vehicle harness electrical connector |
| 2 | OCSM electrical connector |
| 3 | Front height motor electrical connector |
| 4 | Cushion heater mat electrical connector |
| 5 | Horizontal motor electrical connector |
| 6 | Side air bag electrical connector |
