Outboard of Cushion Frame and Power Seat Track From Upright
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

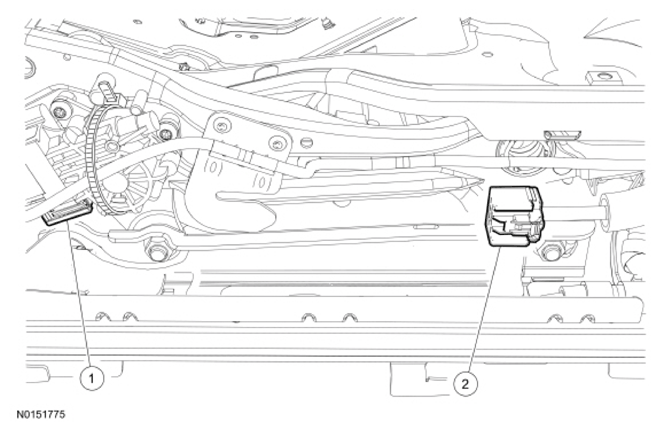

Fig 1: Identifying Rear Height Motor And Seat Control Switch Electrical Connectors
Courtesy of FORD MOTOR CO.
Item
Description
1
Rear height motor electrical connector
2
Seat control switch electrical connector
Make sure the passenger seat cushion wire harness is correctly routed and attached.
