Inboard Side of Cushion Frame and Manual Seat Track From Upright

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

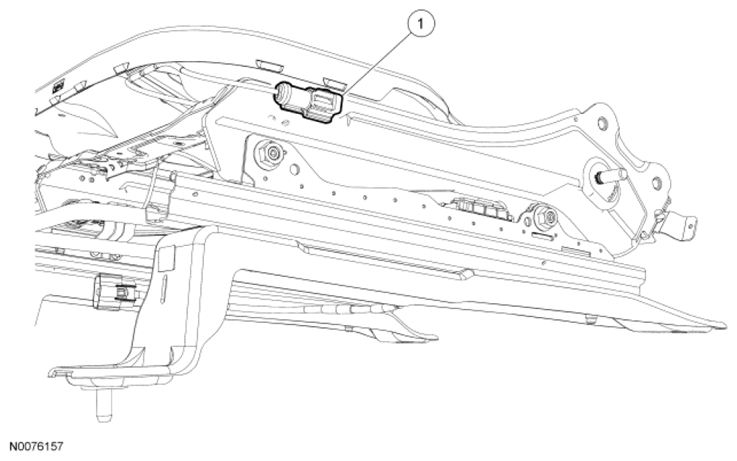

Fig 1: Identifying Safety Belt Buckle Switch Electrical Connector
G06504419Courtesy of FORD MOTOR CO.
Item Description
1 Safety belt buckle switch electrical connector
  1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
