Removal and Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.
WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call the Poison Control Center at: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE: On vehicles equipped with adaptive cruise control, the ABS module and Hydraulic Control Unit (HCU) are serviced as an assembly.

All vehicles

  1. If installing a new ABS  module, upload the module configuration to the scan tool. For additional information, refer to MODULE CONFIGURATION .
  2. Remove the Air Cleaner (ACL) outlet tube and the ACL  assembly. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  3. Remove the battery and battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    Vehicles with 2.0L GTDI engine

    • To install, tighten to 9 Nm (80 lb-in).
      G09291555

    All vehicles

    • To install, tighten to 20 Nm (177 lb-in).

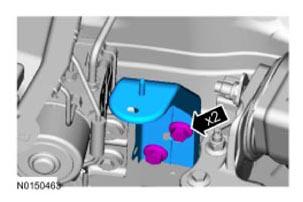

      G09291598
  4. Disconnect the ABS  module electrical connector.
  5. Disconnect the 6 brake tube fittings.
    • To install, tighten the brake master cylinder tube fittings to 28 Nm (21 lb-ft).
    • To install, tighten the remaining brake tube fittings to 20 Nm (177 lb-in).
  6. Remove the 3 Hydraulic Control Unit (HCU) bracket-to-frame bolts and the HCU  .
    • To install, tighten to 25 Nm (18 lb-ft).
  7. If necessary, remove the 2 HCU  bracket-to-HCU  bolts and separate the HCU  from the bracket.
    • To install, tighten to 11 Nm (97 lb-in).
  8. To install, reverse the removal procedure.
    1. If a new ABS  module was installed, download the module configuration information from the scan tool to the new ABS module. For additional information, refer to MODULE CONFIGURATION .
    2. If a new ABS  module was installed, carry out the IVD initialization sequence and follow the scan tool onscreen instructions.
    3. Bleed the brake system and the HCU  . For additional information, refer to BRAKE SYSTEM - GENERAL INFORMATION .
