Parking Brake Control: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

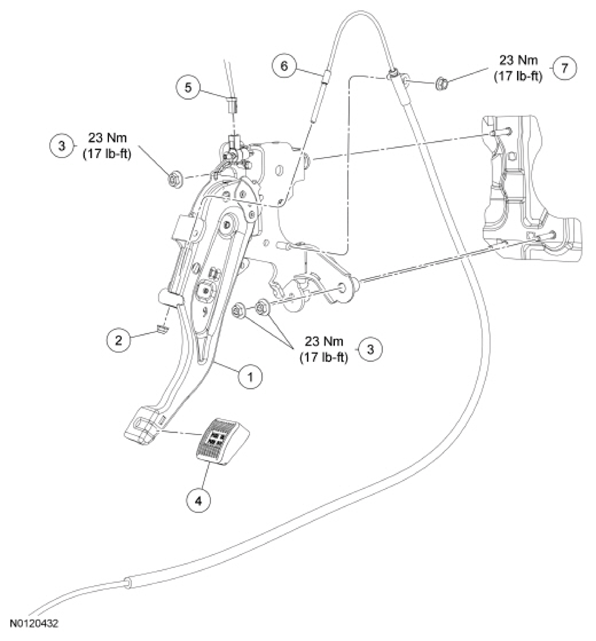

| Item | Part Number | Description |
|---|---|---|
| 1 | 2780 | Parking brake control |
| 2 | W520201 | Parking brake control adjustment nut (part of 2853) |
| 3 | W707144 | Parking brake control nuts (3 required) |
| 4 | 2454 | Parking brake control pad (also part of 2780) |
| 5 | - | Parking brake switch electrical connector (part of 14A005) |
| 6 | 2853 | Front parking brake cable (also part of 2780) |
| 7 | - | Front parking brake cable-to-control nut (part of 2780) |
