Halfshaft - LH: Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with 6F35

  1. NOTE: If the LH transmission case bushing or the LH halfshaft bushing surface shows signs of excessive wear or damage, a new LH transmission case bushing and a new LH halfshaft must be installed, or excessive noise or transmission failure can occur.

    Inspect the Transaxle Case Bushing. If the surface is damaged, Refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 6F35 .

    G08662370

    All

  2. Inspect the inboard halfshaft hub surfaces for wear or damage and install a new halfshaft, if necessary.
    G08617115
  3. Inspect the outboard halfshaft hub surfaces for wear or damage and install a new halfshaft, if necessary.
    G08617116
  4. Install a new 29.5 mm (1.161 in) stub shaft circlip.
    Fig 1: Locating Stub Shaft Circlip
    G06659676Courtesy of FORD MOTOR CO.
  5. Insert the halfshaft into the wheel hub.
  6. NOTE: The sharp edges on the stub shaft splines can slice or puncture the oil seal. Use care when inserting the stub shaft into the transmission to avoid oil seal damage.
    NOTE: After insertion, pull the halfshaft inner end to make sure the circlip is locked.

    Push the stub shaft into the transmission so the circlip locks into the differential side gear.

  7. Rotate the knuckle into position.
  8. Position the ball joint in the wheel knuckle. Install the new ball joint bolt and nut.
    • Tighten to 55 Nm (41 lb-ft).
      Fig 2: Locating Ball Joint Bolt
      G06500728Courtesy of FORD MOTOR CO.
  9. Position the brake hose bracket and install the bolt.
    • Tighten to 20 Nm (177 lb-in).
      Fig 3: Locating Brake Hose Bracket Bolt
      G06500711Courtesy of FORD MOTOR CO.
  10. Connect the wheel speed sensor harness to the shock absorber bracket.

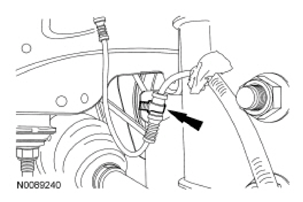

    Fig 4: Locating Wheel Speed Sensor Harness Clamp
    G09291476Courtesy of FORD MOTOR CO.
  11. NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.
    NOTE: Apply the brake to keep the halfshaft from rotating.

    Use the previously removed inner hub nut to seat the halfshaft.

    • Tighten to 350 Nm (258 lb-ft).
    • Remove and discard the hub nut.
  12. NOTE: The wheel hub nut contains a one-time locking chemical that is activated by the heat created when it is tightened. Install and tighten the new wheel hub nut to specification within 5 minutes of starting it on the threads. Always install a new wheel hub nut after loosening or when not tightened within the specified time or damage to the components can occur.
    NOTE: Apply the brake to keep the halfshaft from rotating.

    Install a new hub nut.

    • Tighten to 350 Nm (258 lb-ft).
  13. Install the front wheel and tire. Refer to WHEELS AND TIRES .
