Active Torque Coupling Clutch: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When replacing the RDU clutch, the ATC coil and yoke are a matched set and must be replaced also.

NOTE: When replacing the RDU clutch, the 4X4 control module will need to be reconfigured with the new Active Torque Coupling (ATC) bar code information. If the new bar code information does not match the existing 4X4 control module information, driveline damage or driveability concerns can occur.

NOTE: Removal steps may contain installation instructions.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING & LIFTING .

2.

Remove the driveshaft. Refer to: DRIVESHAFT .

3.

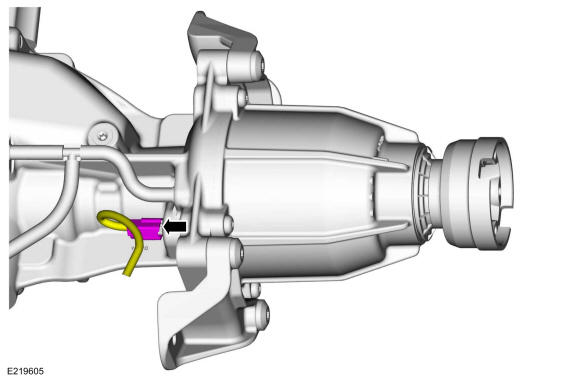

Disconnect the Active Torque Coupling (ATC) connector.

GFD18828

Courtesy of FORD MOTOR COMPANY

4.

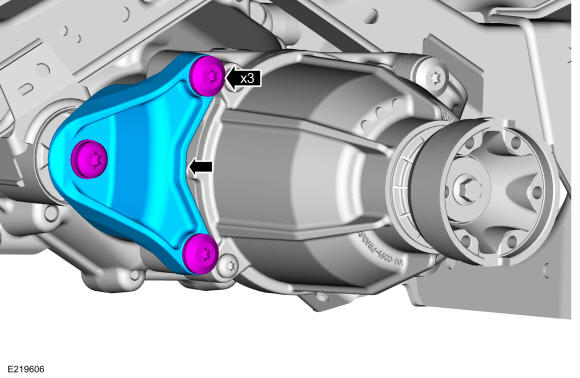

Remove the RDU front bracket bolts and bracket.
Tighten to 90 Nm (66 lb ft)

GFD18829

Courtesy of FORD MOTOR COMPANY

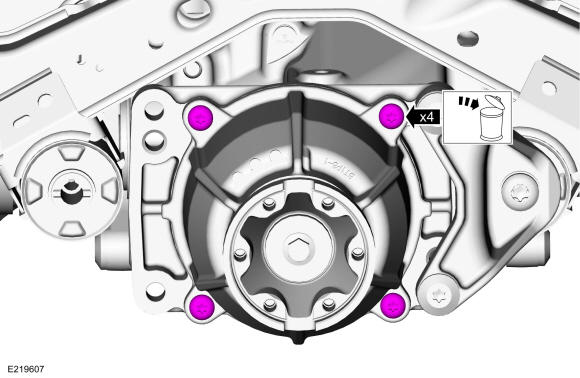

5.

Remove and discard the RDU coupler housing bolts.
Tighten to 40 Nm (30 lb ft)

GFD18830

Courtesy of FORD MOTOR COMPANY

6.

NOTE: When assembling use a 2 mm bead of silicon sealant.

NOTE: The RDU coupler housing should be dry. The presence of fluid in the housing cavity is most likely from a failed / overheated Active Torque Coupling (ATC). Clean any fluid from the housing before assembly.

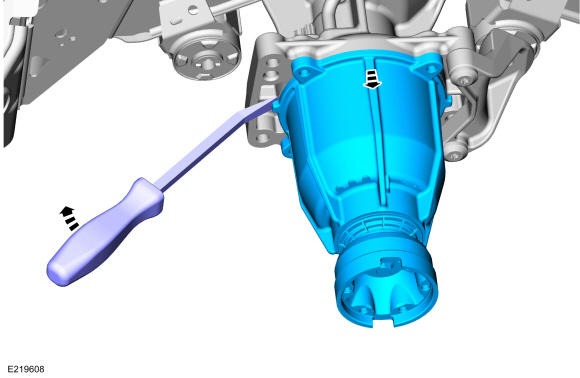

Using a pry bar, remove the RDU coupler housing.

Use the General Equipment: Tire Lever

Material

: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

GFD18831

Courtesy of FORD MOTOR COMPANY

7.

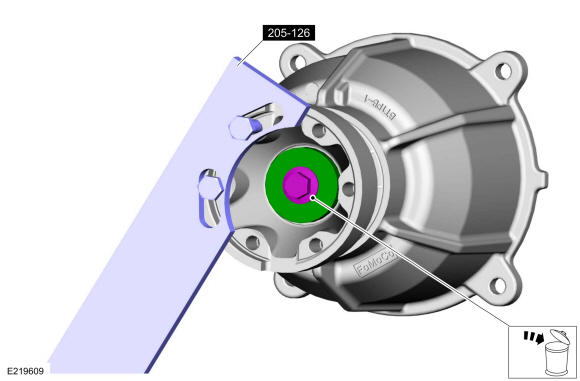

Remove and discard the companion flange bolt, remove the companion flange washer and the companion flange.
Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

Tighten to 54 Nm (40 lb ft)

GFD18832

Courtesy of FORD MOTOR COMPANY

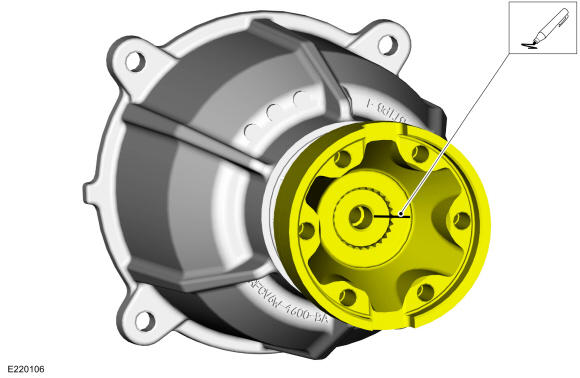

8.

Index mark the companion flange and stub shaft.

GFD18833

Courtesy of FORD MOTOR COMPANY

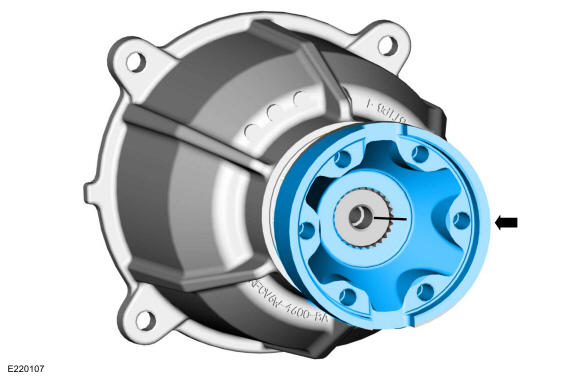

9.

Remove the companion flange.

GFD18834

Courtesy of FORD MOTOR COMPANY

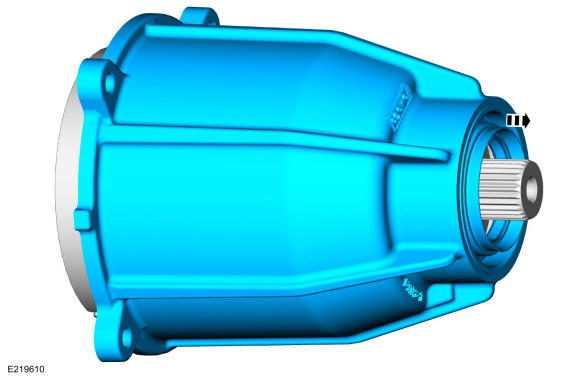

10.

Remove the RDU clutch coupler housing from the Intelligent Torque Controlled Coupling (ITCC).

GFD18835

Courtesy of FORD MOTOR COMPANY

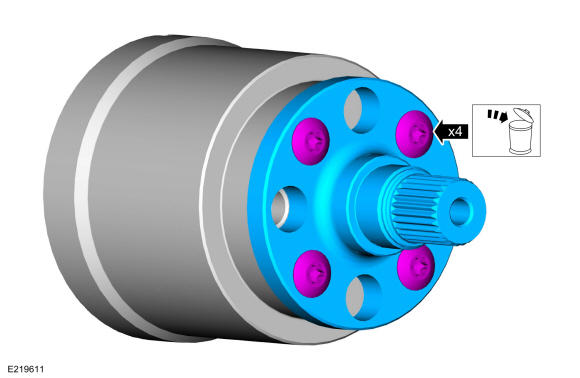

11.

Remove and discard the stub shaft bolts, and remove the stub shaft.
Tighten to 58 Nm (43 lb ft)

GFD18836

Courtesy of FORD MOTOR COMPANY

12.

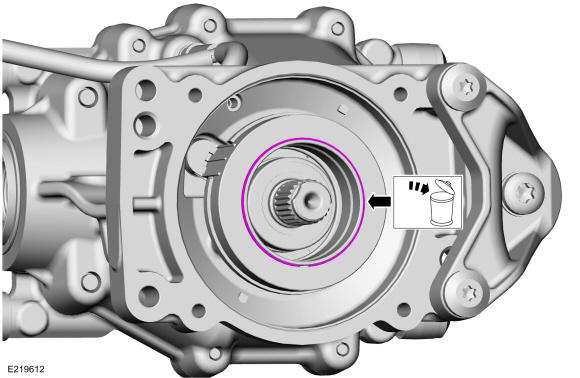

Remove and discard the ATC coil snap ring.

GFD18837

Courtesy of FORD MOTOR COMPANY

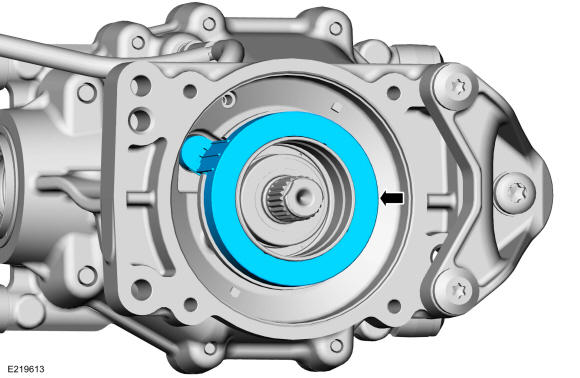

13.

NOTE: The ATC coil and the ATC coil yoke must be replaced as a matched set.

Remove the ATC coil.

GFD18838

Courtesy of FORD MOTOR COMPANY

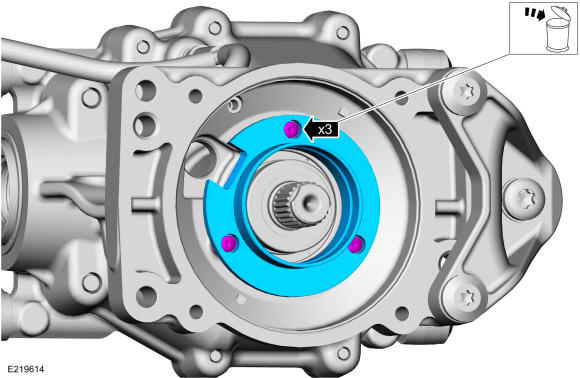

14.

NOTE: The ATC coil and the ATC coil yoke must be replaced as a matched set.

Remove and discard the ATC coil yoke bolts and remove the ATC coil yoke.

Tighten to 10 Nm (89 in lbs)

GFD18839

Courtesy of FORD MOTOR COMPANY

15.

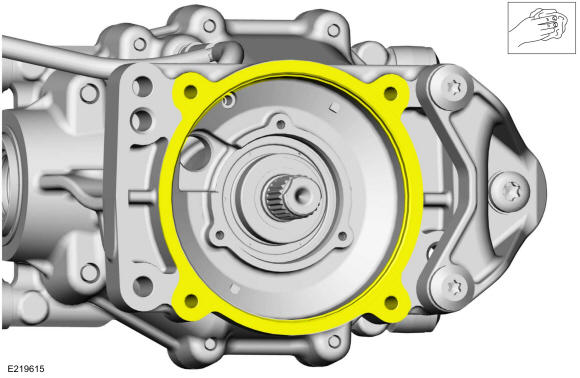

Clean the mating surface of the RDU differential housing. Refer to: RTV SEALING SURFACE CLEANING AND PREPARATION .

Courtesy of FORD MOTOR COMPANY

16.

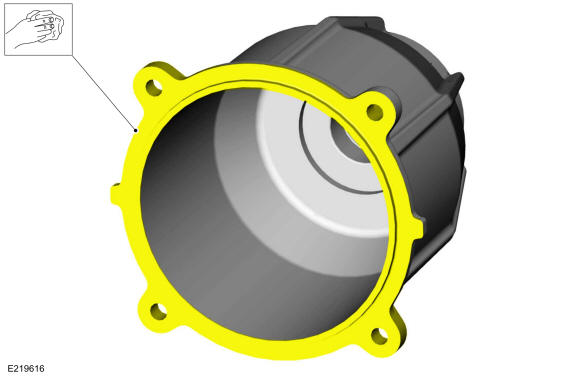

Clean the mating surface of the RDU clutch coupler housing. Refer to: RTV SEALING SURFACE CLEANING AND PREPARATION .

Courtesy of FORD MOTOR COMPANY
