Active Torque Coupling Clutch: Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

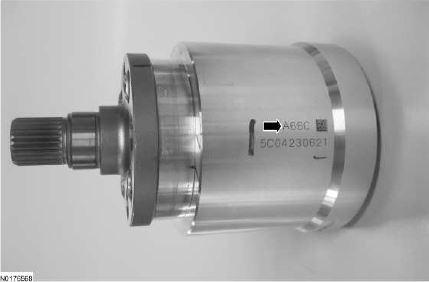

  1. Record the etched 4-digit calibration code from the new RDU clutch coupler.
    G00590197Courtesy of FORD MOTOR COMPANY

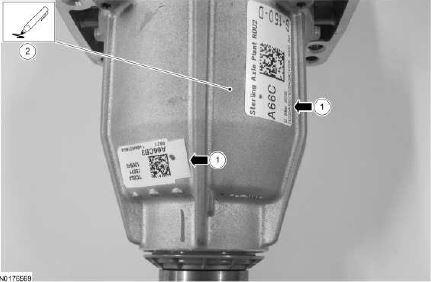

    1. If the new 4-digit calibration code from the RDU clutch coupler does not match the digit calibration code on the RDU clutch coupler housing, remove the sticker and/or any calibration code.
    2. Apply the new digit calibration code to the RDU clutch coupler housing.
    G00590198Courtesy of FORD MOTOR COMPANY
  3. To install, reverse the removal procedure.
